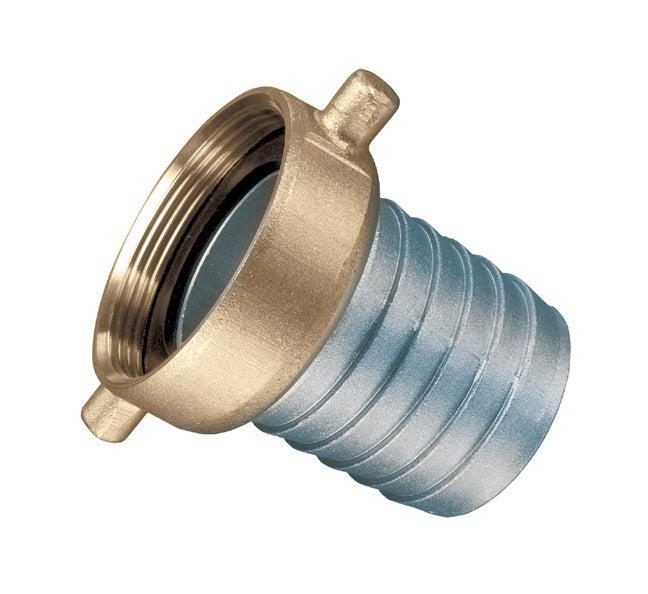

FHNST-F250 by Kuriyama | FHNST-F Series | Pin Lug Coupling | Female End | 2-1/2" Hose Barb x 2-1/2" Female NST | Aluminum with Brass Swivel Nut

FHNST-F250 by Kuriyama | FHNST-F Series | Pin Lug Coupling | Female End | 2-1/2" Hose Barb x 2-1/2" Female NST | Aluminum with Brass Swivel Nut

Save $9.78 Save $9.78
$32.32
$32.32 - $32.32
$32.32
$22.54
$22.54 - $22.54
$22.54

Kuriyama of America Inc.
FFHNST-F Series | Pin Lug Coupling | Female End | Hose Barb x Female NST | Aluminum with Brass Swivel Nut

Versatile threaded hose connectors designed for suction and discharge applications.
Specifications for Variant SKU: FHNST-F250 Kuriyama
Series: FHNST-F Series
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Hose Barb, 2-1/2in Female NST
Material(s): Aluminum, Brass
Applicable Specs & Approvals: ASTM B108-92, ASTM B283

What are the Features?

  • Versatile threaded hose connectors designed for suction and discharge applications.
  • Male ends supplied with NST threads (National Fire Hose Straight Threads).
  • Cylindrical studs or "pins" positioned on the outside rim of the coupling allowing the use of a spanner wrench to tighten the coupling.
  • Replacement gaskets for all versions of the pin lug couplings with NST threads.

What are the Materials?

  • ASTM B108-92 356 aluminum alloy.
  • ASTM B283 Grade C37700 brass alloy.
  • Gasket Material: Buna-N.
  • Gasket Temperature Rating: -40°F (-40°C) to +250°F (+121°C).
Part Number Size
(in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
FHNST-F150 1-1/2" 75 PSI 0.29 lbs
FHNST-F250 2-1/2" 50 PSI 0.70 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
