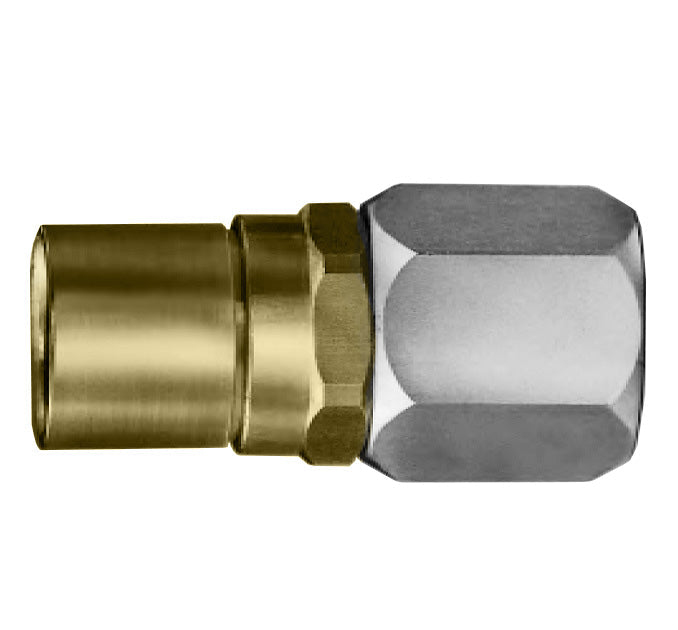

FITT. #35 Weatherhead by Danfoss | Everswage | Female SAE 45° Swivel Crimp Fitting for Everflex Hose | 5/8" Hose Barb x 3/4" Female SAE 45° Swivel | Brass

FITT._X35 Weatherhead by Danfoss | Everswage | Female SAE 45° Swivel Crimp Fitting for Everflex Hose | 5/8" Hose Barb x 3/4" Female SAE 45° Swivel | Brass

$38.88 - $38.88
$38.88
$38.88 - $38.88
$38.88

Weatherhead by Danfoss
Everswage Crimp Fitting for Everflex Hose - Female SAE 45° Swivel - Straight
Specifications for Variant SKU: FITT._X35 Danfoss
Brand: Weatherhead
Series: Everswage Series
Shape (Orientation): Straight
Ends Configuration: 5/8in Hose Barb, 3/4in Female SAE 45 Flare
Material(s): Brass
Special Properties: Swivel
Compatible with the following Series: Everflex S-Series  |   Everflex SC-Series
About:
  • Everswage hose ends are permanently attached to Everflex Smooth Bore hose using a swaging process.
  • The unique design of the Everswage collar allows a hose assembly fabricator to slide several collars at once on the hose. This significantly reduces the time required to fabricate an assembly.
Note:
  • The operating pressure of 1/2" I.D. hoses are lowered to 1500 psi and 5/8" I.D. hoses are lowered to 1250 psi when brass Everswage fittings are used
Compatible Hose:
  • For use with Everflex Hose Series S, SC
Warning:
  • Selection of the proper end fitting for the hose end application is essential to the proper operation and safe use of the hose and related equipment. Inadequate attention to the selection of the end fittings for your application can result in leaking or the hose end blowing off the hose, leading to serious personal injury, death or property damage.
Part Number
Brass		 Hose I.D. Tube Size Thread Size A Hose
Cut-off
Factor**		 E F
FITT. #30 3/16" 1/4" 7/16-20 1.50" 0.90" 1/2" 9/16"
FITT. #32 5/16" 3/8" 5/8-18 1.63" 0.96" 5/8" 3/4"
FITT. #33 13/32" 1/2" 3/4-16 2.00" 1.18" 3/4" 7/8"
FITT. #34 1/2" 5/8" 7/8-14 2.13" 1.30" 7/8" 1"
FITT. #35* 5/8" 3/4" 1-1/16-14 2.25" 1.38" 1-1/16" 1-1/4"

* Only fitting 35 has Carbon Steel nut.

** To determine the correct length of hose, subtract the cut-off factor for each end fitting from the overall length of assembly.

Note: Drawings may differ from actual parts.
