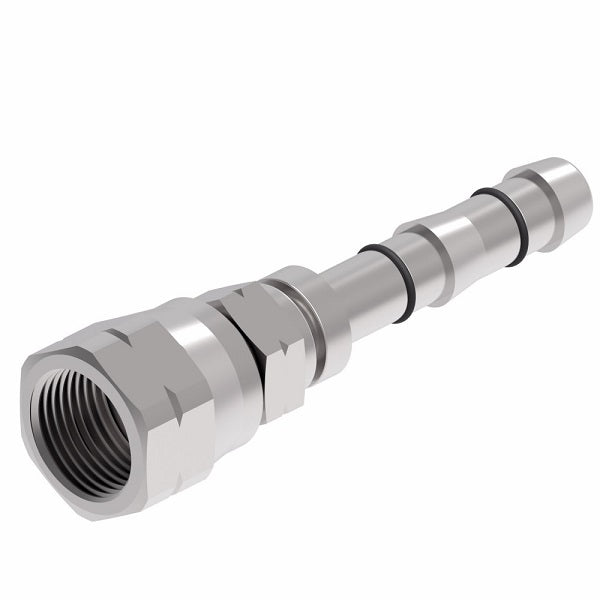

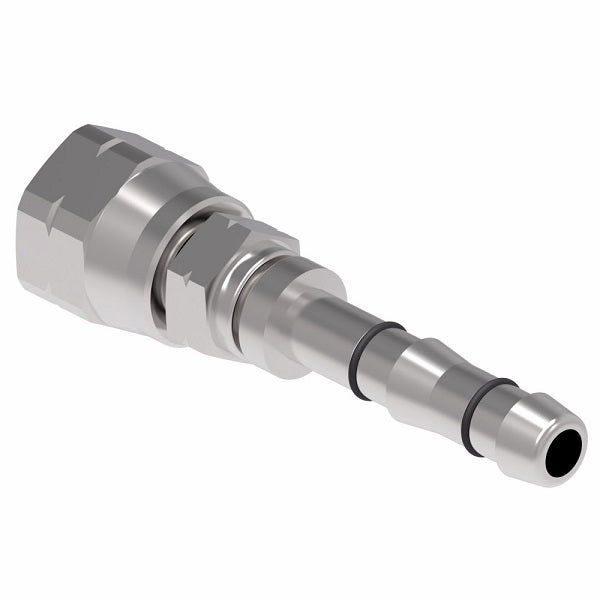

FJ3057-07-1212S E-Z Clip System by Danfoss | Female SAE 45° Flare | A/C Refrigeration Fitting | -12 Female SAE 45° Flare x -12 Hose Barb| Steel
FJ3057-07-1212S E-Z Clip System by Danfoss | Female SAE 45° Flare | A/C Refrigeration Fitting | -12 Female SAE 45° Flare x -12 Hose Barb | Steel
FJ3057-07-1212S E-Z Clip System by Danfoss | Female SAE 45° Flare | A/C Refrigeration Fitting | -12 Female SAE 45° Flare x -12 Hose Barb | Steel
FJ3057-07-1212S E-Z Clip System by Danfoss | Female SAE 45° Flare | A/C Refrigeration Fitting | -12 Female SAE 45° Flare x -12 Hose Barb| Steel

FJ3057-07-1212S E-Z Clip System by Danfoss | Female SAE 45° Flare | A/C Refrigeration Fitting | -12 Female SAE 45° Flare x -12 Hose Barb | Steel

$66.10 - $66.10
$66.10
$66.10 - $66.10
$66.10

Danfoss A/C & Refrigeration
E-Z Clip System - Female SAE 45° Flare - Straight

Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ3057-07-1212S Danfoss
Brand: E-Z Clip
Shape (Orientation): Straight
Ends Configuration: 3/4in Female SAE 45 Flare, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. Ref.

 Clip & Cage Kit
(Required)
FJ3057-01-0606S 5/8-18 -06 2.88" 1.35" 0.56" FF14171
FJ3057-02-0608S 5/8-18 -08 3.14" 1.62" 0.75" FF14172
FJ3057-03-0808S 3/4-16 -08 2.96" 1.42" 0.69" FF14172
FJ3057-04-0810S 3/4-16 -10 3.56" 2.02" 0.88" FF14173
FJ3057-05-1010S 7/8-14 -10 3.63" 2.08" 1.00" FF14173
FJ3057-06-1012S 7/8-14 -12 3.66" 2.08" 1.00" FF14174
FJ3057-07-1212S 1-1/16-14 -12 3.20" 1.62" 1.25" FF14174
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
