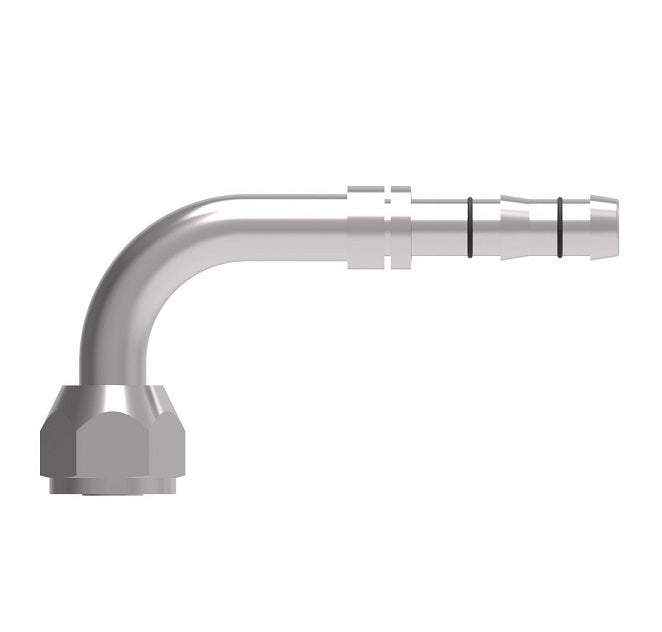

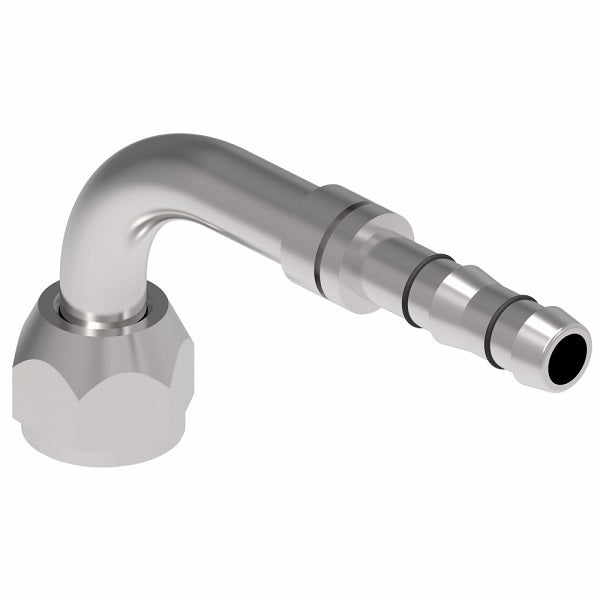

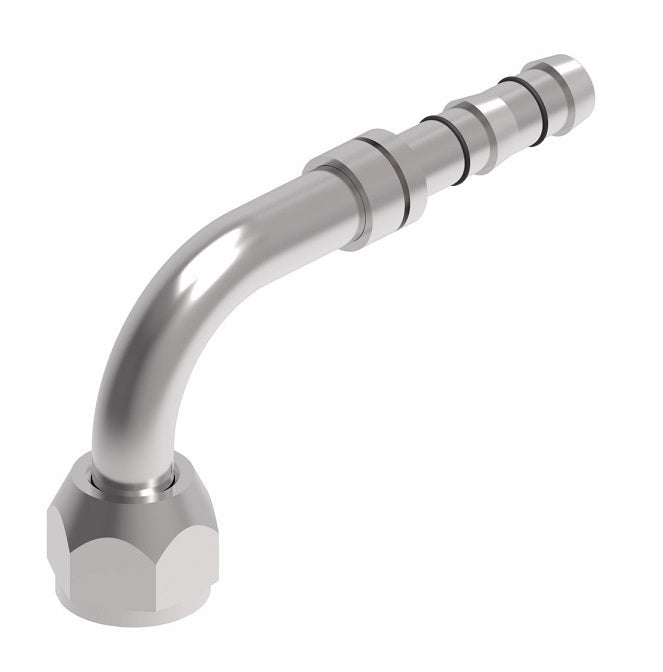

FJ3111-01-0808S E-Z Clip System by Danfoss | Female O-Ring (Long Pilot) Metric Thread 90° Elbow | A/C Refrigeration Fitting | M20 Female O-Ring Long Pilot x -08 Hose Barb | Steel

FJ3111-01-0808S E-Z Clip System by Danfoss | Female O-Ring (Long Pilot) Metric Thread 90° Elbow | A/C Refrigeration Fitting | M20 Female O-Ring Long Pilot x -08 Hose Barb | Steel

$103.50 - $103.50
$103.50
$103.50 - $103.50
$103.50

Danfoss A/C & Refrigeration
E-Z Clip System - Female O-Ring (Long Pilot) Metric Thread - 90° Elbow

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ3111-01-0808S Danfoss
Brand: E-Z Clip
Shape (Orientation): 90 Degree
Ends Configuration: M20 Female O-Ring Long Pilot, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3111-01-0808S M20 x 1.5 -08 3.77" 2.23" 1.62" 0.94" FF14172 22546-13 FF90178-13
FJ3111-02-0810S M20 x 1.5 -10 3.78" 2.23" 1.62" 0.94" FF14173 22546-13 FF90178-13
FJ3111-03-0806S M20 x 1.5 -06 3.75" 2.23" 1.62" 0.94" FF14171 22546-13 FF90178-13
FJ3409-1212S M27 x 2 -12 4.74" 3.16" 2.56" 1.25" FF14174 22546-17 FF90178-17
