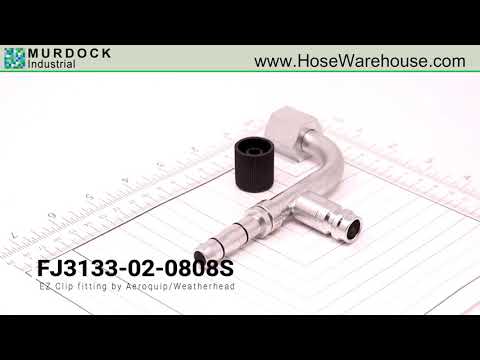

FJ3133-02-0808S E-Z Clip System by Danfoss | Female SAE 45° with High Side Charge Port (R134a) 90° Elbow | A/C Refrigeration Fitting | -08 Female SAE 45° Flare x -08 Hose Barb | Steel
FJ3133-02-0808S E-Z Clip System by Danfoss | Female SAE 45° with High Side Charge Port (R134a) 90° Elbow | A/C Refrigeration Fitting | -08 Female SAE 45° Flare x -08 Hose Barb | Steel
FJ3133-02-0808S E-Z Clip System by Danfoss | Female SAE 45° with High Side Charge Port (R134a) 90° Elbow | A/C Refrigeration Fitting | -08 Female SAE 45° Flare x -08 Hose Barb | Steel
FJ3133-02-0808S E-Z Clip System by Danfoss | Female SAE 45° with High Side Charge Port (R134a) 90° Elbow | A/C Refrigeration Fitting | -08 Female SAE 45° Flare x -08 Hose Barb | Steel

FJ3133-02-0808S E-Z Clip System by Danfoss | Female SAE 45° with High Side Charge Port (R134a) 90° Elbow | A/C Refrigeration Fitting | -08 Female SAE 45° Flare x -08 Hose Barb | Steel

$118.81 - $118.81
$118.81
$118.81 - $118.81
$118.81

Danfoss A/C & Refrigeration
Female SAE 45° Flare with High Side Charge Port (R134a) - 90° Elbow

Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ3133-02-0808S Danfoss
Brand: E-Z Clip
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Female SAE 45 Flare, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. F Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)
FJ3133-01-0606S 5/8-18 -06 4.35" 2.82" 0.63" 1.28" 0.75" FF14171
FJ3133-02-0808S 3/4-16 -08 4.61" 3.07" 0.63 1.53" 0.88" FF14172
FJ3133-03-1010S 7/8-14 -10 4.80" 3.25" 0.63" 1.84"" 0.88" FF14173
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
