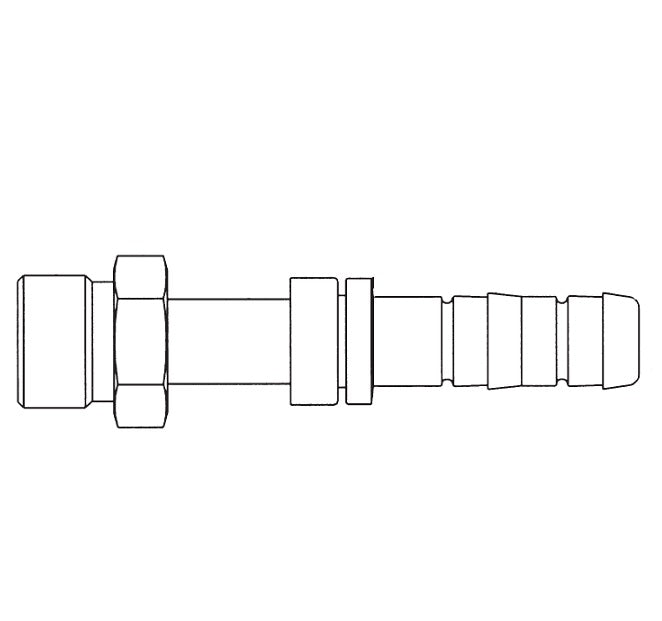

FJ3136-0810S E-Z Clip System by Danfoss | Male O-Ring Pilot (Rigid) Metric Thread | A/C Refrigeration Fitting | M20 Male O-Ring Pilot x -10 Hose Barb | Steel

FJ3136-0810S E-Z Clip System by Danfoss | Male O-Ring Pilot (Rigid) Metric Thread | A/C Refrigeration Fitting | M20 Male O-Ring Pilot x -10 Hose Barb | Steel | Pack of 10

$1,238.57 - $1,238.57
$1,238.57
$1,238.57 - $1,238.57
$1,238.57

Danfoss A/C & Refrigeration
E-Z Clip System - Male O-Ring Pilot (Rigid) Metric Thread - Straight

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.


Package Quantity: 10 Units

Specifications for Variant SKU: FJ3136-0810S Danfoss | 10 |
Brand: E-Z Clip
Shape (Orientation): Straight
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. F Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3136-0810S M20 x 1.5 -10 3.62" 2.07" 0.69" 0.88" FF14173 22546-13 FF90178-13

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
