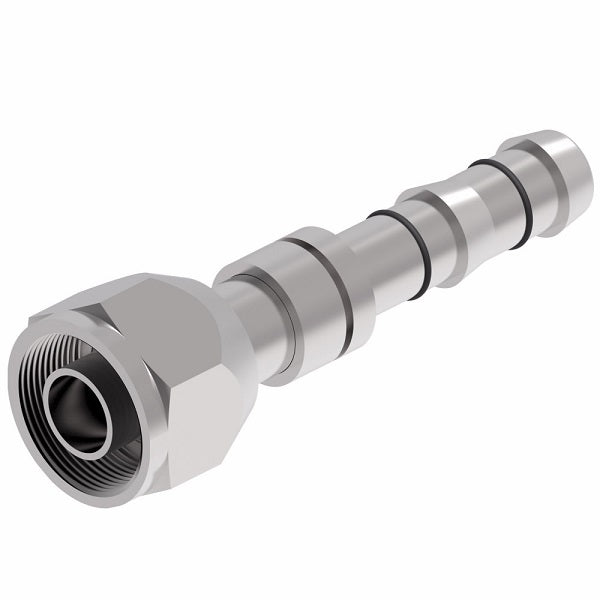

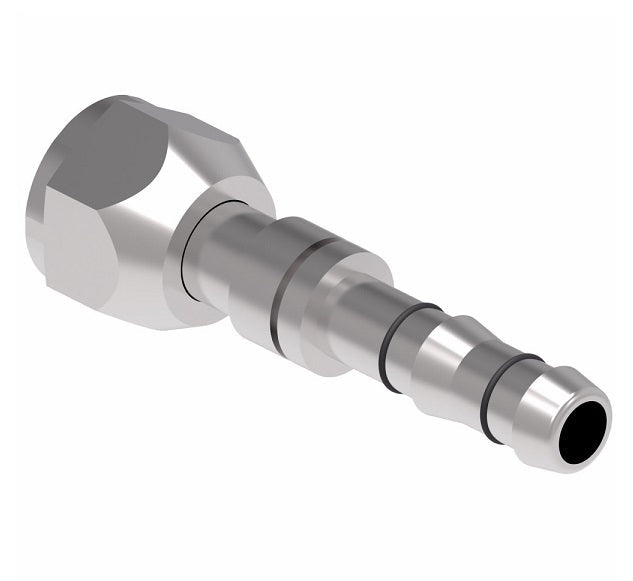

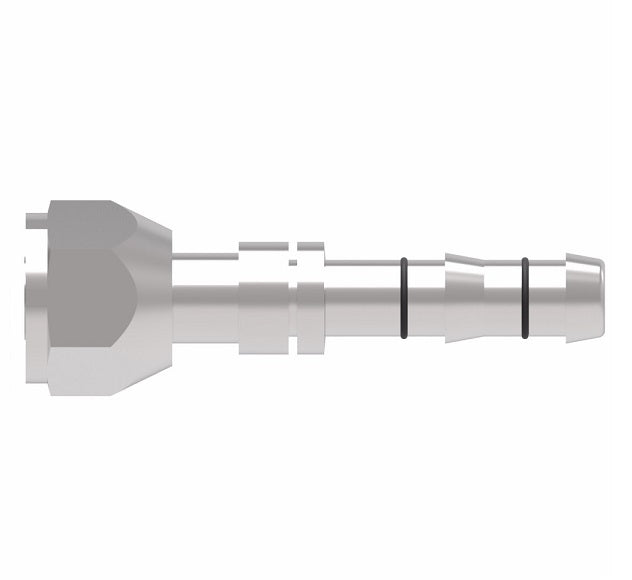

FJ3408-0808S E-Z Clip System by Danfoss | Female O-Ring Metric (Long Pilot) | A/C Refrigeration Fitting | -08 Female O-Ring Metric Long Pilot x -08 Hose Barb | Steel

FJ3408-0808S E-Z Clip System by Danfoss | Female O-Ring Metric (Long Pilot) | A/C Refrigeration Fitting | -08 Female O-Ring Metric Long Pilot x -08 Hose Barb | Steel | Pack of 10

$465.12 - $465.12

$465.12

$465.12 - $465.12

$465.12

Danfoss A/C & Refrigeration
E-Z Clip System - Female O-Ring Metric (Long Pilot) - Straight

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.

Package Quantity: 10 Units

Specifications for Variant SKU: FJ3408-0808S Danfoss \| 10 \|
Brand:	E-Z Clip
Shape (Orientation):	Straight
Material(s):	Steel
Compatible with the following Series:	GH001 Series \| GH134 Series

Additional Information:
E-Z Clip Assembly Instructions & Guide.PDF


Steel Part Number	Thread "T"	Hose Size	A Ref.	D Ref.	Ref.	Clip & Cage Kit (Required)	O-Ring Options
Steel Part Number	Thread "T"	Hose Size	A Ref.	D Ref.	Ref.	Clip & Cage Kit (Required)	Neoprene	Green HNBR
FJ3408-0808S	M20 x 1.5	-08	3.20"	1.66"	0.94"	FF14172	22546-13	FF90178-13
FJ3408-0810S	M20 x 1.5	-10	3.21"	1.66"	0.94"	FF14173	22546-13	FF90178-13
FJ3408-1212S	M27 x 2	-12	4.25"	2.67"	1.25"	FF14174	22546-17	FF90178-17
