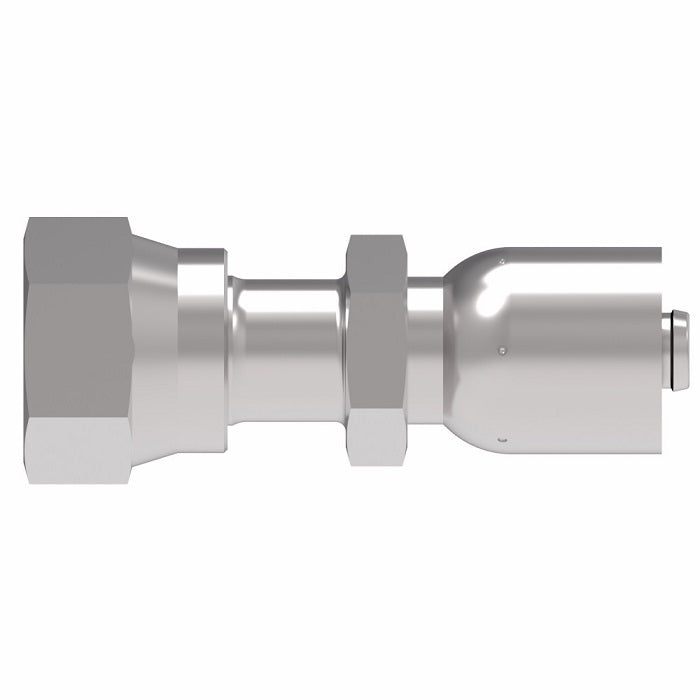

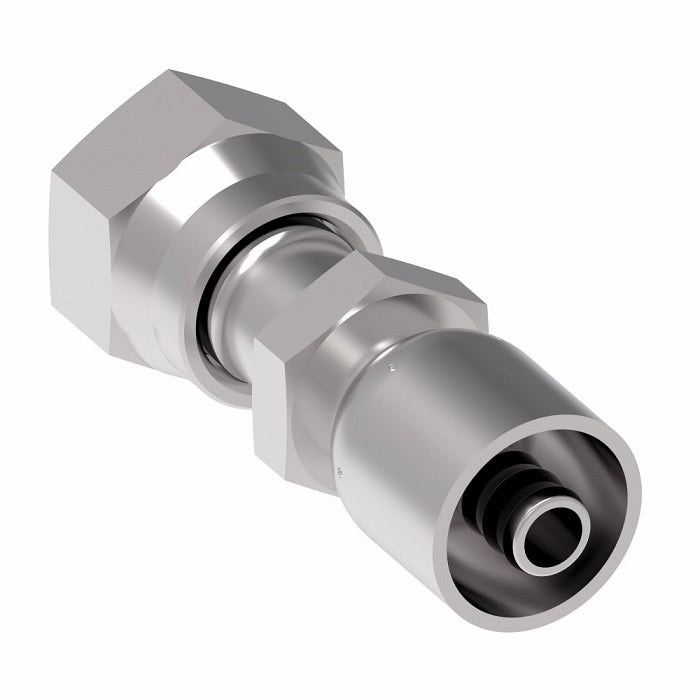

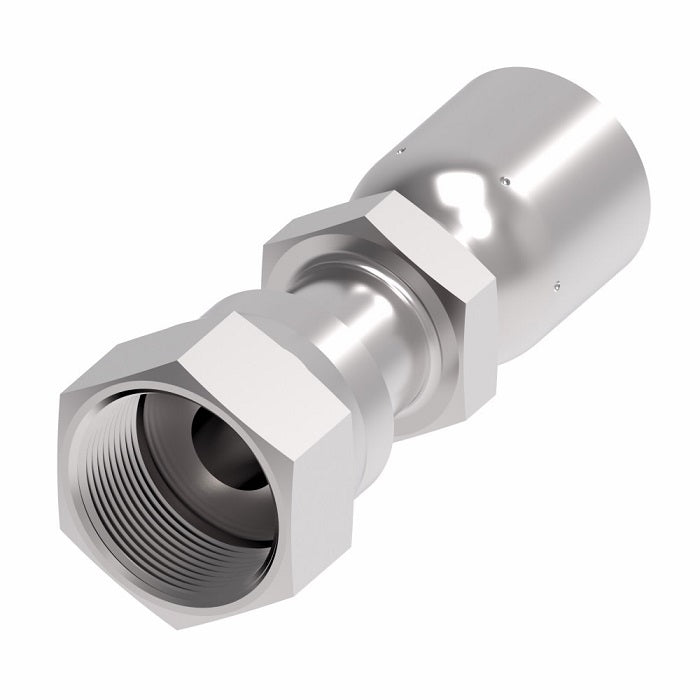

FJ3468-0810S Aeroquip by Danfoss | Female ORS Swivel 100R5 Crimp Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel
FJ3468-0810S Aeroquip by Danfoss | Female ORS Swivel 100R5 Crimp Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel
FJ3468-0810S Aeroquip by Danfoss | Female ORS Swivel 100R5 Crimp Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel
FJ3468-0810S Aeroquip by Danfoss | Female ORS Swivel 100R5 Crimp Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel

FJ3468-0810S Aeroquip by Danfoss | Female ORS Swivel 100R5 Crimp Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel

$41.39 - $41.39
$41.39
$41.39 - $41.39
$41.39

Aeroquip® by Danfoss
Truck and Fuel 100R5 Crimp Fitting - FJ Series - Female ORS Swivel - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FJ3468-0810S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Female O-Ring Face Seal, 5/8in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 1503 Series  |   FC234 Series  |   FC300 Series  |   FC350 Series  |   FC355 Series
Technical Info:
Steel
Part Number 		Hose Size Thread A D Hex
FJ3468-0404S -04 9/16-18 1.83" 1.05" 0.69"
FJ3468-0606S -06 11/16-16 1.99" 1.21" 0.81"
FJ3468-0806S -06 13/16-16 2.15" 1.36" 0.94"
FJ3468-0608S -08 11/16-16 2.07" 1.28" 0.81"
FJ3468-0808S -08 13/16-16 2.16" 1.38" 0.94"
FJ3468-0810S -10 13/16-16 2.25" 1.37" 0.94"
FJ3468-1010S -10 1-14 2.34" 1.46" 1.13"
FJ3468-1012S -12 - - - -
FJ3468-1210S -10 1-3/16-12 2.50" 1.62" 1.38"
FJ3468-1212S -12 1-3/16-12 2.50" 1.62" 1.38"
FJ3468-1216S -16 1-3/16-12 2.85" 1.86" 1.38"
FJ3468-1616S -16 1-7/16-12 2.80" 1.82" 1.63"
FJ3468-2020S -20 1-11/16-12 3.10" 1.91" 1.88"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
