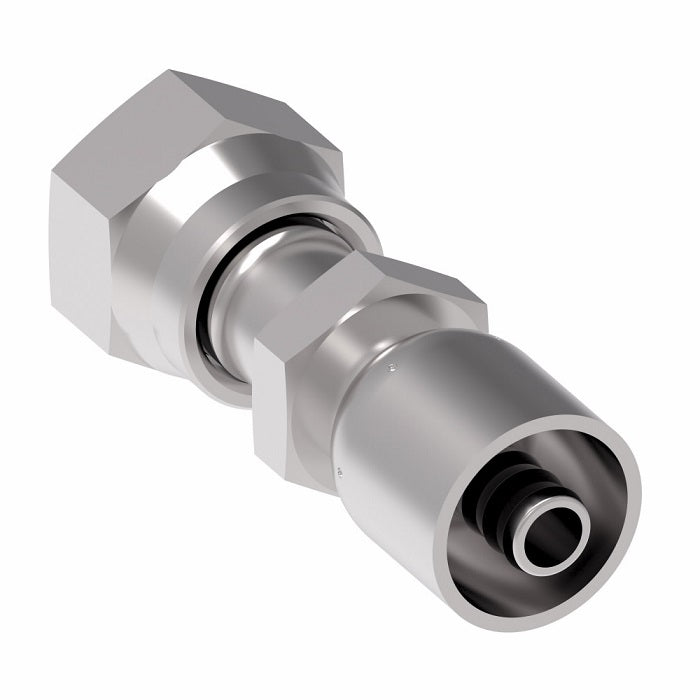

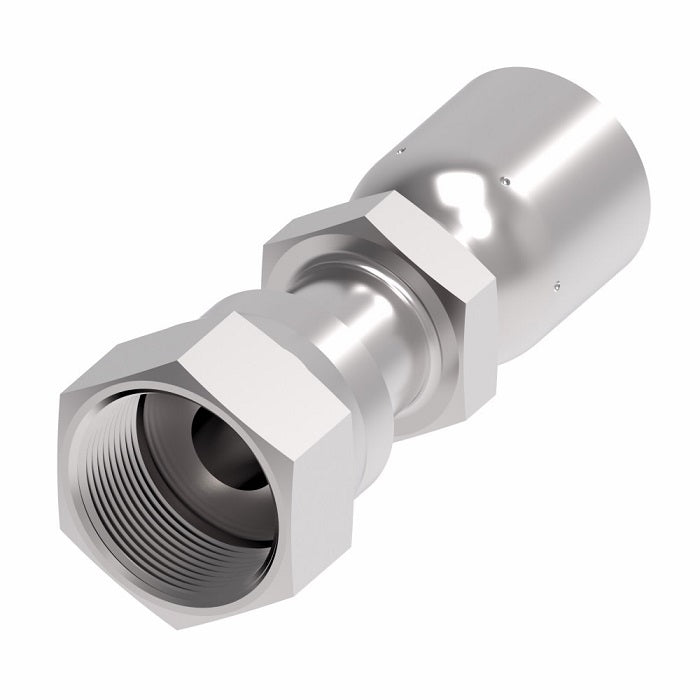

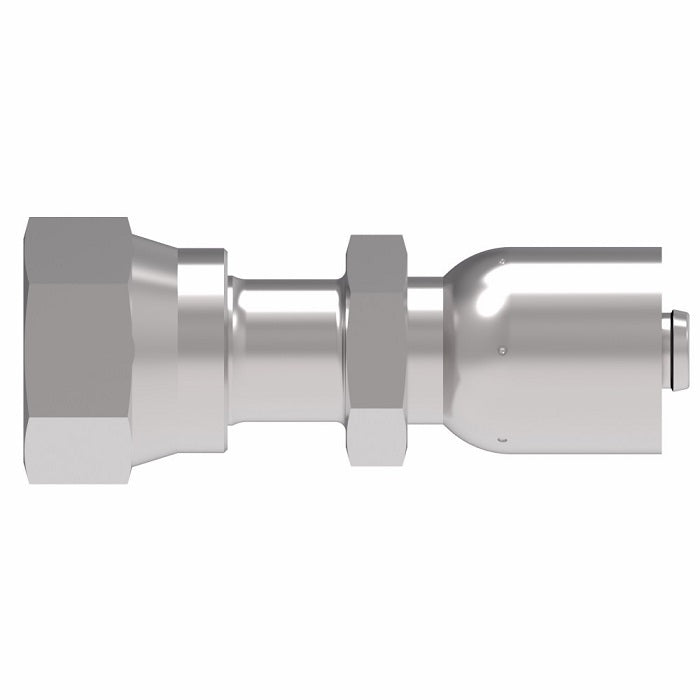

FJ3468-1216S Aeroquip by Danfoss | Female ORS Swivel 100R5 Crimp Fitting | FJ Series | -12 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel

FJ3468-1216S Aeroquip by Danfoss | Female ORS Swivel 100R5 Crimp Fitting | FJ Series | -12 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel | Pack of 10

$556.13 - $556.13

$556.13

$556.13 - $556.13

$556.13

Aeroquip® by Danfoss
Truck and Fuel 100R5 Crimp Fitting - FJ Series - Female ORS Swivel - Straight

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: FJ3468-1216S Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	3/4in Female O-Ring Face Seal, 1in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	1503 Series \| FC234 Series \| FC300 Series \| FC350 Series \| FC355 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	Hex
FJ3468-0404S	-04	9/16-18	1.83"	1.05"	0.69"
FJ3468-0606S	-06	11/16-16	1.99"	1.21"	0.81"
FJ3468-0806S	-06	13/16-16	2.15"	1.36"	0.94"
FJ3468-0608S	-08	11/16-16	2.07"	1.28"	0.81"
FJ3468-0808S	-08	13/16-16	2.16"	1.38"	0.94"
FJ3468-0810S	-10	13/16-16	2.25"	1.37"	0.94"
FJ3468-1010S	-10	1-14	2.34"	1.46"	1.13"
FJ3468-1012S	-12	-	-	-	-
FJ3468-1210S	-10	1-3/16-12	2.50"	1.62"	1.38"
FJ3468-1212S	-12	1-3/16-12	2.50"	1.62"	1.38"
FJ3468-1216S	-16	1-3/16-12	2.85"	1.86"	1.38"
FJ3468-1616S	-16	1-7/16-12	2.80"	1.82"	1.63"
FJ3468-2020S	-20	1-11/16-12	3.10"	1.91"	1.88"
