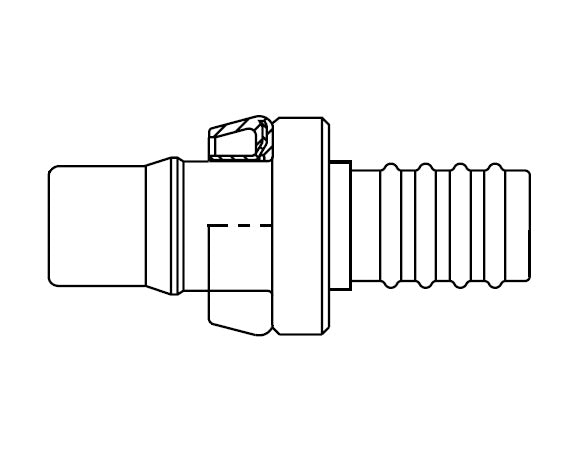

FJ4823-0808S Aeroquip by Danfoss | Nipple Assembly Male STC (Snap to Connect) Hose End (FJ) | for FC699 Hose | -08 Male STC x -08 Hose Barb | Steel

FJ4823-0808S Aeroquip by Danfoss | Nipple Assembly Male STC (Snap to Connect) Hose End (FJ) | for FC699 Hose | -08 Male STC x -08 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$301.40 - $301.40
$301.40
$301.40 - $301.40
$301.40

Aeroquip® by Danfoss
STC (Snap to Connect) Fitting - Nipple Assembly - Male STC (Snap to Connect) Hose End (FJ) - Straight

Nipple for use with FW1097 Sockets and FC699 Hose.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FJ4823-0808S Danfoss | 10 |
Shape (Orientation): Straight
Ends Configuration: 1/2in Male STC, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: FC699 Series
Applications:
  • Hydraulic
    • Power Steering
    • Auxiliary Hydraulics
    • Power Brakes
    • Turbochargers
    • Fuel Injection Systems
    • Hydraulic Work Circuits
  • Air Conditioning, Refrigeration and Truck and Bus
    • Refrigerant Supply Lines
    • Compressor Discharge
    • Power Steering
    • Oil Cooler
  • Pneumatic
    • Brakes
    • Air Supply Lines
  • Cooling
    • Transmission Oil Coolers
    • Heat Exchangers
  • Equipment
    • Tractors, Loaders, Engines, Snow plows, Trucks, Crawlers, Compressors, Trailers, Reel and Deck Mowers, Asphalt and Concrete Pavers, Trenchers, Lift Platforms, Hydraulic Attachments
Features:
  • Positive round-wire style latching mechanism.
  • Swivels for installation (in absence of pressure).
  • Low profile; compact design.
  • Elastomeric o-ring seal.
  • Capable of direct porting into valve blocks or manifolds.
  • Dual purpose dust seal/release sleeve.
  • Simple stamped release tool for disconnecting.
Benefits:
  • Fast reliable one-hand connections requiring no assembly tools.
  • Eliminates cross-threading, over or undertorquing, and hose twisting.
  • Installs easily in confined areas.
  • Virtually zero leak performance per SAE J1176.
  • Direct porting eliminates adapters to maximize cost savings.
  • Resists external contamination.
  • Allows easy disconnection with release tool (sold separately).
Technical Info:
Steel
Part Number		 D1 D2 L1 L2 STC Release Tool
FJ4823-0606S 0.26" 0.71" 1.68" 1.02" FF90213-06
FJ4823-0808S 0.38" 0.91" 2.03" 1.27" FF90213-08

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
