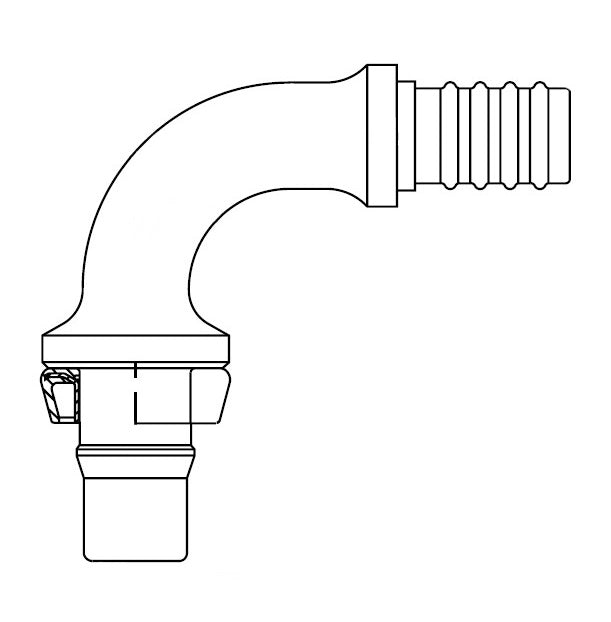

FJ4824-0606S Aeroquip by Danfoss | Nipple Assembly Male STC (Snap to Connect) Hose End (FJ) 90° Elbow | for FC699 Hose | -06 Male STC x -06 Hose Barb | Steel

FJ4824-0606S Aeroquip by Danfoss | Nipple Assembly Male STC (Snap to Connect) Hose End (FJ) 90° Elbow | for FC699 Hose | -06 Male STC x -06 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$558.00 - $558.00
$558.00
$558.00 - $558.00
$558.00

Aeroquip® by Danfoss
STC (Snap to Connect) Fitting - Nipple Assembly - Male STC (Snap to Connect) Hose End (FJ) - 90° Elbow

Nipple for use with FW1097 Sockets and FC699 Hose.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FJ4824-0606S Danfoss | 10 |
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Male STC, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: FC699 Series
Applications:
  • Hydraulic
    • Power Steering
    • Auxiliary Hydraulics
    • Power Brakes
    • Turbochargers
    • Fuel Injection Systems
    • Hydraulic Work Circuits
  • Air Conditioning, Refrigeration and Truck and Bus
    • Refrigerant Supply Lines
    • Compressor Discharge
    • Power Steering
    • Oil Cooler
  • Pneumatic
    • Brakes
    • Air Supply Lines
  • Cooling
    • Transmission Oil Coolers
    • Heat Exchangers
  • Equipment
    • Tractors, Loaders, Engines, Snow plows, Trucks, Crawlers, Compressors, Trailers, Reel and Deck Mowers, Asphalt and Concrete Pavers, Trenchers, Lift Platforms, Hydraulic Attachments
Features:
  • Positive round-wire style latching mechanism.
  • Swivels for installation (in absence of pressure).
  • Low profile; compact design.
  • Elastomeric o-ring seal.
  • Capable of direct porting into valve blocks or manifolds.
  • Dual purpose dust seal/release sleeve.
  • Simple stamped release tool for disconnecting.
Benefits:
  • Fast reliable one-hand connections requiring no assembly tools.
  • Eliminates cross-threading, over or undertorquing, and hose twisting.
  • Installs easily in confined areas.
  • Virtually zero leak performance per SAE J1176.
  • Direct porting eliminates adapters to maximize cost savings.
  • Resists external contamination.
  • Allows easy disconnection with release tool (sold separately).
Technical Info:
Steel
Part Number		 D1 L1 L2 L3 R STC Release Tool
FJ4824-0606S 0.26" 1.74" 1.07" 1.56" 0.55" FF90213-06
FJ4824-0808S 0.35" 2.10" 1.36" 2.09" 0.75" FF90213-08
FJ4824-1010S 0.45" 2.38" 1.59" 2.38" 0.87" FF90213-10
