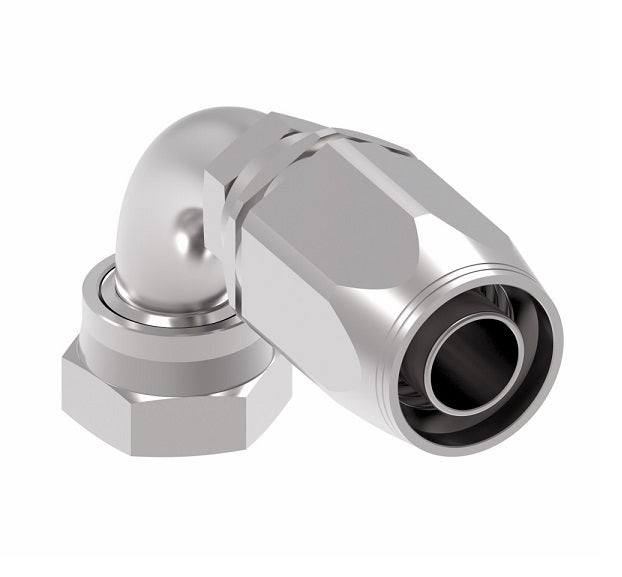

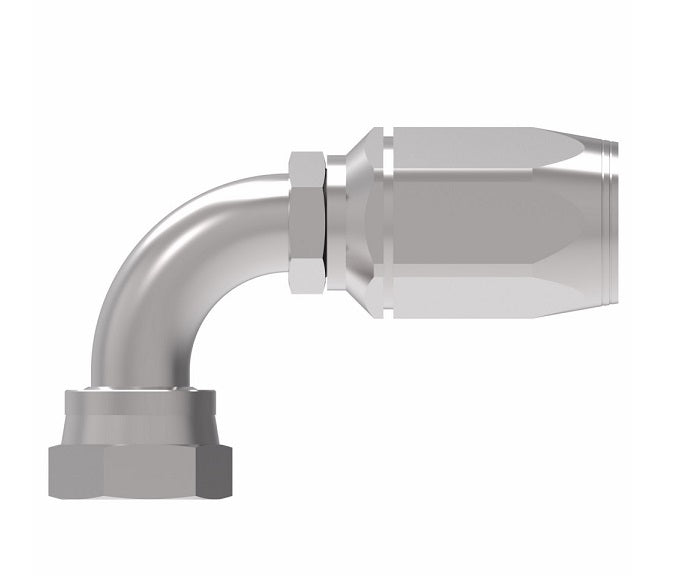

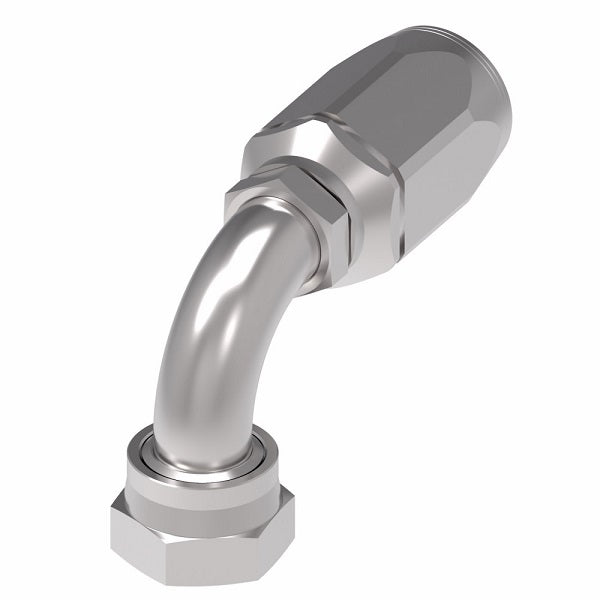

FJ7346-0808S Aeroquip by Danfoss | Female ORS Swivel Short Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel
FJ7346-0808S Aeroquip by Danfoss | Female ORS Swivel Short Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel | Pack of 10
FJ7346-0808S Aeroquip by Danfoss | Female ORS Swivel Short Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel | Pack of 10
FJ7346-0808S Aeroquip by Danfoss | Female ORS Swivel Short Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel

FJ7346-0808S Aeroquip by Danfoss | Female ORS Swivel Short Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel | Pack of 10

$1,055.83 - $1,055.83
$1,055.83
$1,055.83 - $1,055.83
$1,055.83

Aeroquip® by Danfoss
100R2 TTC Reusable Hose Fitting - FJ Series - Female O-Ring Face Seal (ORS) Swivel Short Drop - 90° Elbow

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: FJ7346-0808S Danfoss | 10 |
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Female O-Ring Face Seal, 1/2in Reusable Hose End
Material(s): Steel
Special Properties: Swivel, Short Drop
Compatible with the following Series: GH793 Series
Technical Info:
Note:
  • For use with GH793 hose ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size "T" Thread A D EØ H
FJ7346-0606S -06 11/16-16 2.72" 1.38" 0.26" 0.90"
FJ7346-0808S -08 13/16-16 3.03" 1.52" 0.38" 1.15"
