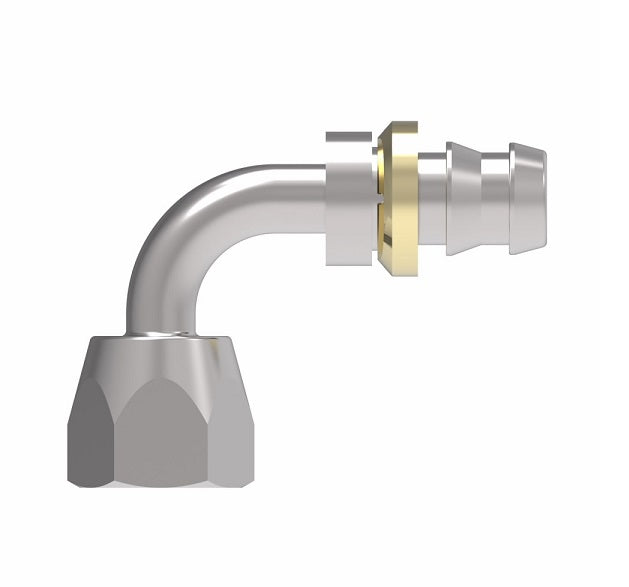

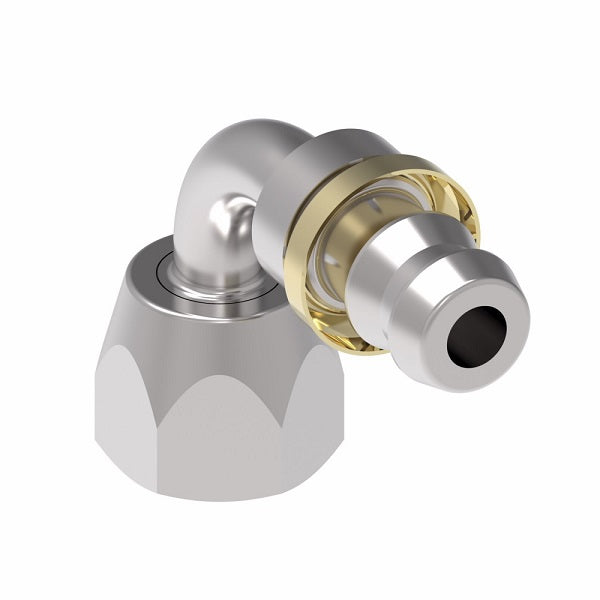

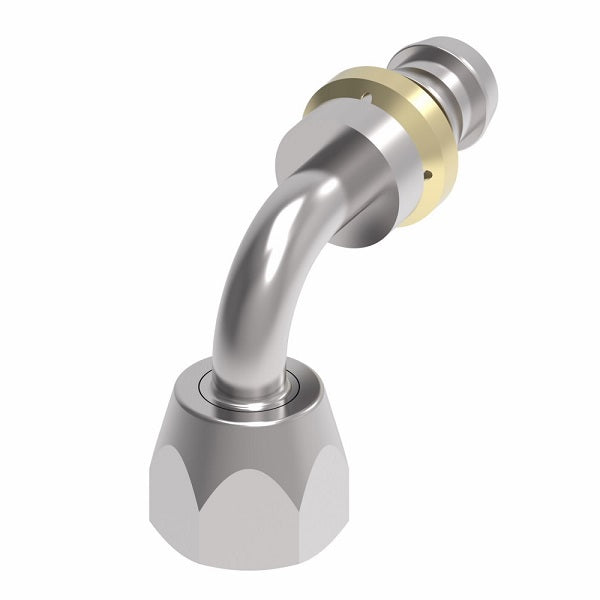

FJ7358-0404S Aeroquip by Danfoss | Female ORS Swivel 90° Elbow Socketless Reusable Hose Fitting | FJ Series | -04 Female O-Ring Face Seal Swivel x -04 Push-On Hose Barb | Steel

FJ7358-0404S Aeroquip by Danfoss | Female ORS Swivel 90° Elbow Socketless Reusable Hose Fitting | FJ Series | -04 Female O-Ring Face Seal Swivel x -04 Push-On Hose Barb | Steel

Name: FJ7358-0404S Aeroquip by Danfoss | Female ORS Swivel 90° Elbow Socketless Reusable Hose Fitting | FJ Series | -04 Female O-Ring Face Seal Swivel x -04 Push-On Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: FJ7358-0404S Danfoss
Price: 267.28 USD
Availability: InStock

$267.28 - $267.28

$267.28

$267.28 - $267.28

$267.28

Aeroquip® by Danfoss
Socketless (Push-On Hose Barb) Reusable Hose Fitting - Female O-Ring Face Seal Swivel - 90° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FJ7358-0404S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1/4in Female O-Ring Face Seal, 1/4in Push-On Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2556 Series \| 2565 Series \| FC332 Series \| FC647 Series \| H201 Series \| 35FH Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	EØ	H
FJ7358-0404S	-04	9/16-18	1.52"	0.77"	0.17"	0.82"
FJ7358-0606S	-06	11/16-16	1.70"	0.93"	0.30"	0.91"
FJ7358-0808S	-08	13/16-16	2.06 "	1.05"	0.39"	1.15"
FJ7358-1212S	-12	1-3/16-12	3.32"	1.70"	0.61"	1.90"
