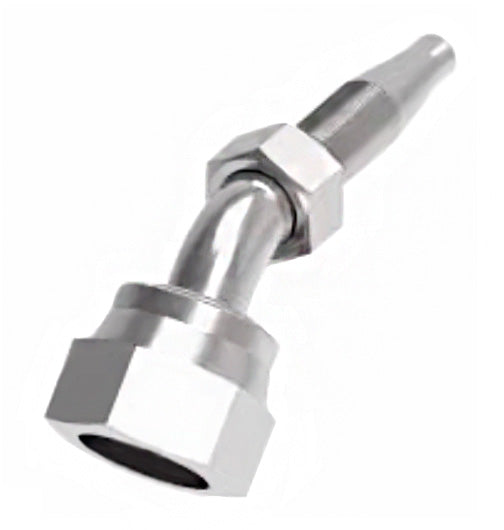

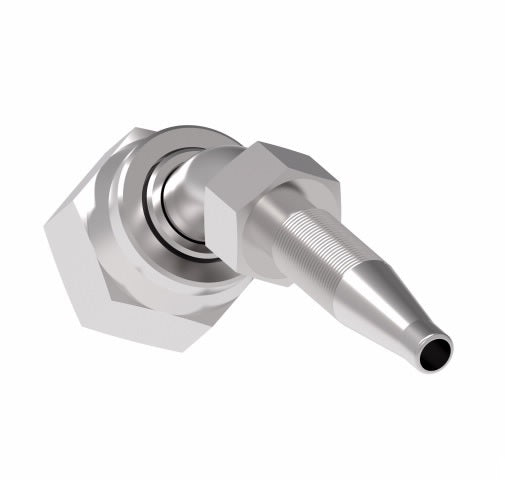

FJ8733-0808S Weatherhead by Danfoss | Female ORS Swivel 45° Elbow Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel

FJ8733-0808S Weatherhead by Danfoss | Female ORS Swivel 45° Elbow Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$845.60 - $845.60

$845.60

$845.60 - $845.60

$845.60

Weatherhead by Danfoss
Field Attachable Fitting for 1 Wire Braided Hose - 1R series - Female O-Ring Face Seal Swivel - 45° Elbow

Specifications for Variant SKU: FJ8733-0808S Danfoss \| 10 \|
Shape (Orientation):	45 Degree
Ends Configuration:	1/2in Female O-Ring Face Seal, 1/2in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	H180 Series \| H280 Series

Features:
Non-skive, two-piece crimp Fitting. Clear silver hexavalent chromium-free plating. Carbon steel material.


	Component Part Numbers
Complete Fitting Part Number	Nipple Assembly Part Number Steel	Reusable Socket Part Number	Thread Size	Hose Size	A	D	E&Oslash	H
-	-	1RA4	9/16-18	-04	2.48"	1.58"	0.17"	0.41"
-	-	1RA6	11/16-16	-06	2.79"	1.82"	0.26"	0.43"
-	FJ8733-0808S	1RA8	13/16-16	-08	3.28"	1.91"	0.38"	0.59"
-	FJ8733-1212S	1RA12	1-3/16-12	-12	4.15"	2.40"	0.61"	0.83"
-	FJ8733-1616S	1RA16	1-7/16-12	-16	4.76"	2.51"	0.81"	0.94"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
