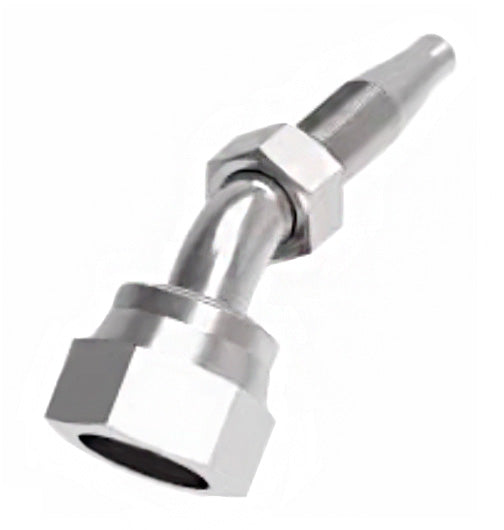

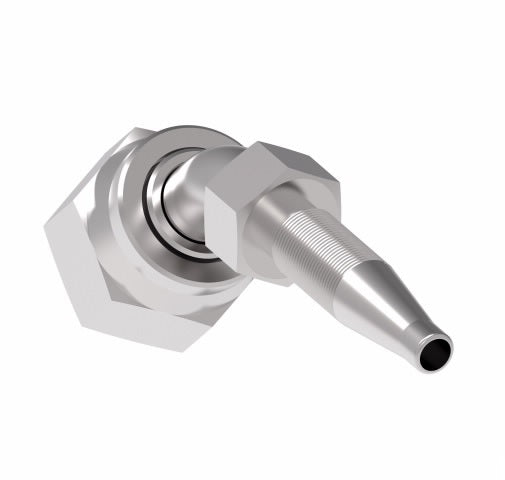

FJ8733-1212S Weatherhead by Danfoss | Female ORS Swivel 45° Elbow Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel

FJ8733-1212S Weatherhead by Danfoss | Female ORS Swivel 45° Elbow Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$942.20 - $942.20

$942.20

$942.20 - $942.20

$942.20

Weatherhead by Danfoss
Field Attachable Fitting for 1 Wire Braided Hose - 1R series - Female O-Ring Face Seal Swivel - 45° Elbow

Specifications for Variant SKU: FJ8733-1212S Danfoss \| 10 \|
Shape (Orientation):	45 Degree
Ends Configuration:	3/4in Female O-Ring Face Seal, 3/4in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	H180 Series \| H280 Series

Features:
Non-skive, two-piece crimp Fitting. Clear silver hexavalent chromium-free plating. Carbon steel material.


	Component Part Numbers
Complete Fitting Part Number	Nipple Assembly Part Number Steel	Reusable Socket Part Number	Thread Size	Hose Size	A	D	E&Oslash	H
-	-	1RA4	9/16-18	-04	2.48"	1.58"	0.17"	0.41"
-	-	1RA6	11/16-16	-06	2.79"	1.82"	0.26"	0.43"
-	FJ8733-0808S	1RA8	13/16-16	-08	3.28"	1.91"	0.38"	0.59"
-	FJ8733-1212S	1RA12	1-3/16-12	-12	4.15"	2.40"	0.61"	0.83"
-	FJ8733-1616S	1RA16	1-7/16-12	-16	4.76"	2.51"	0.81"	0.94"
