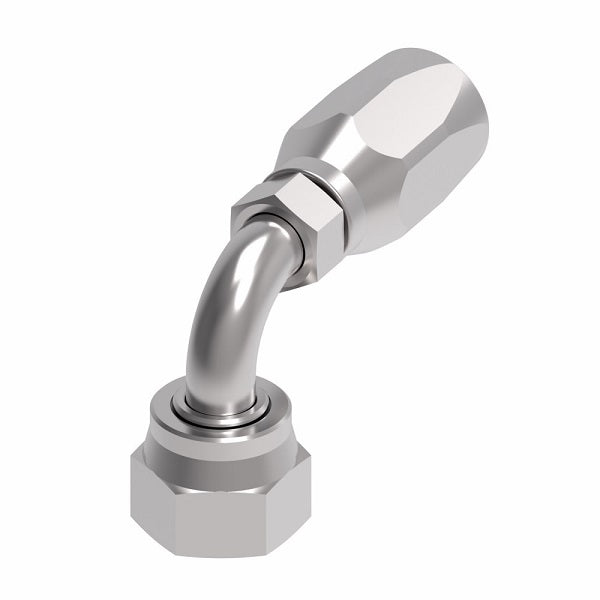

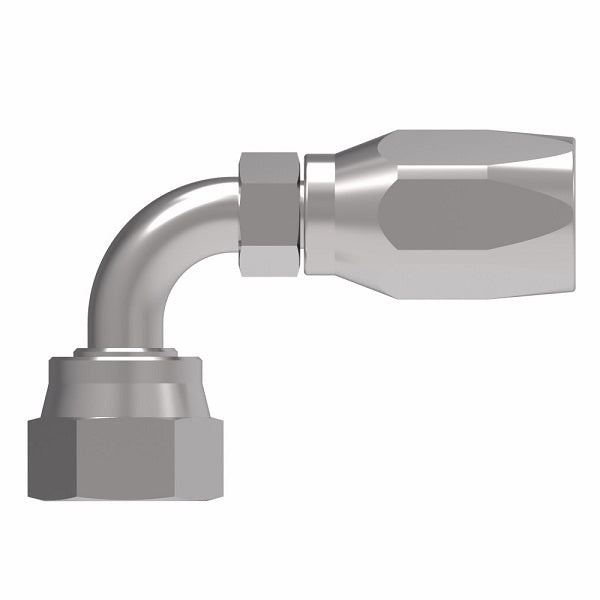

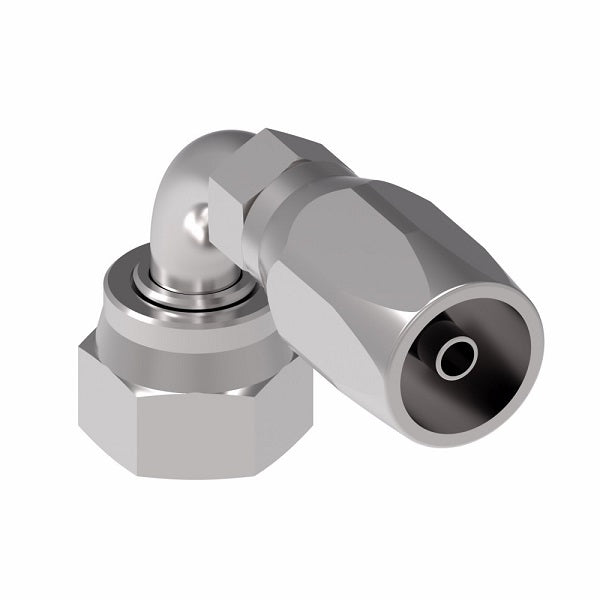

FJ9708-1010S Aeroquip by Danfoss | Female ORS Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -10 Female O-Ring Face Seal Swivel x -10 Reusable Hose End | Steel

Name: FJ9708-1010S Aeroquip by Danfoss | Female ORS Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -10 Female O-Ring Face Seal Swivel x -10 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: FJ9708-1010S Danfoss
Price: 58.58 USD
Availability: InStock

$58.58 - $58.58

$58.58

$58.58 - $58.58

$58.58

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female O-Ring Face Seal (ORS) Swivel Short Drop - 90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FJ9708-1010S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	5/8in Female O-Ring Face Seal, 5/8in Reusable Hose End
Material(s):	Steel
Special Properties:	Short Drop, Swivel
Compatible with the following Series:	1503 Series \| 2580 Series \| 2651 \| FC234 Series \| FC300 Series \| FC321 Series \| FC350 Series \| FC355 Series \| FC802 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	"T" Thread	A	D	EØ	H
FJ9708-0404S	-04	9/16-18	1.80"	1.05"	0.13"	0.82"
FJ9708-0606S	-06	11/16-16	2.13"	1.23"	0.22"	0.90"
FJ9708-0808S	-08	13/16-16	2.76"	1.61"	0.36"	1.15"
FJ9708-1010S	-10	1-14	3.03"	1.74"	0.46"	1.27"
FJ9708-1212S	-12	1-3/16-12	3.74"	2.17"	0.55"	1.88"
FJ9708-1616S	-16	7/16-12	3.55"	2.28"	0.76"	2.21"
FJ9708-2020S	-20	1-11/16-12	4.02"	2.65"	1.01"	2.51"
FJ9708-2424S	-24	2-12	4.42"	2.97"	1.26"	2.70"
