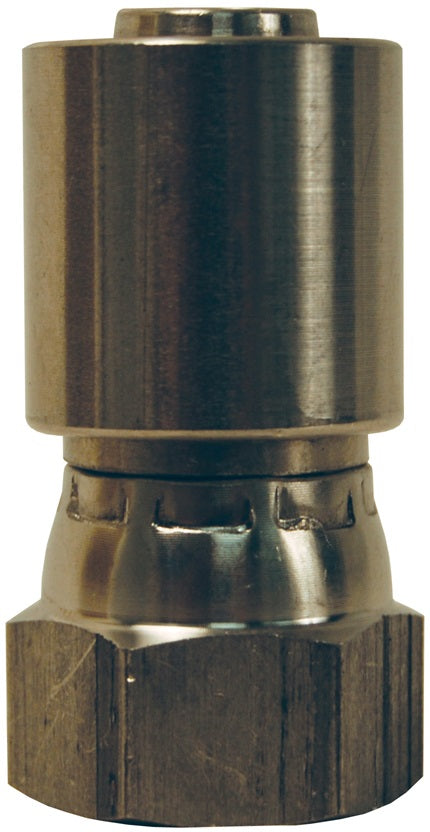

FJR-T16 by Dixon Valve | True I.D. PTFE Hose Fitting | 1" Female JIC Swivel | 316 Stainless Steel

FJR-T16 by Dixon Valve | True I.D. PTFE Hose Fitting | 1" Female JIC Swivel | 316 Stainless Steel

Save $7.31 Save $7.31
$82.27
$82.27 - $82.27
$82.27
$74.96
$74.96 - $74.96
$74.96

Dixon Valve
True I.D. PTFE Hose Fitting | Female JIC Swivel

Suitable for conveying acids, chemicals, foods and pharmaceuticals.

Crimp collars for all True ID fittings are sold separately.
Specifications for Variant SKU: FJR-T16 Dixon
Series: FJR-T Series
Shape (Orientation): Straight
Ends Configuration: 1in Female JIC, 1in Hose Barb
Material(s): 316 Stainless Steel
Special Properties: Swivel
Compatible with the following Series: WOC-T Series  |   BOC-T Series  |   WTB-T Series
Use:
  • For use with True I.D. PTFE hoses.
Carbon Steel
Part Number		 316 Stainless Steel
Part Number		 Size Crimp Collars for Convoluted Hose Crimp Collars for Smooth Bore Hose
Carbon Steel 304 Stainless Steel Carbon Steel 304 Stainless Steel
FJC-T04 FJR-T04 1/4" CSC-T04-1 SSC-T04-1 CSC-T04-2 SSC-T04-2
- FJR-T06 3/8" CSC-T06-1 SSC-T06-1 CSC-T06-2 SSC-T06-2
FJC-T08 FJR-T08 1/2" CSC-T08-1 SSC-T08-1 CSC-T08-2 SSC-T08-2
FJC-T12 FJR-T12 3/4" CSC-T12-1 SSC-T12-1 CSC-T12-2 SSC-T12-2
FJC-T16 FJR-T16 1" CSC-T16-1 SSC-T16-1 CSC-T16-2 SSC-T16-2
FJC-T20 FJR-T20 1-1/4" CSC-T20-1 SSC-T20-1 - -
FJC-T24 FJR-T24 1-1/2" CSC-T24-1 SSC-T24-1 CSC-T24-2 -
FJC-T32 FJR-T32 2" CSC-T32-1 SSC-T32-1 - -
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
