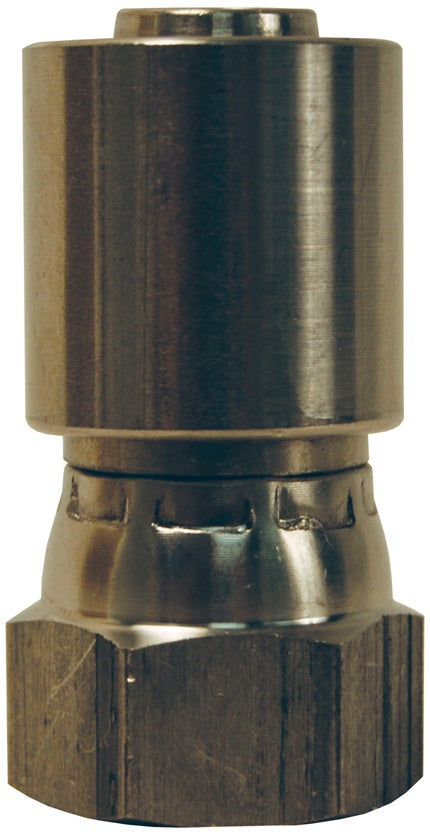

FJR-T04 by Dixon Valve | True I.D. PTFE Hose Fitting | 1/4" Female JIC Swivel | 316 Stainless Steel

Name: FJR-T04 by Dixon Valve | True I.D. PTFE Hose Fitting | 1/4" Female JIC Swivel | 316 Stainless Steel
Brand: Dixon
SKU: FJR-T04 Dixon
Price: 18.48 USD
Availability: InStock

Save $12.32

$30.80

$30.80 - $30.80

$30.80

$18.48

$18.48 - $18.48

$18.48

Dixon Valve
True I.D. PTFE Hose Fitting | Female JIC Swivel

Suitable for conveying acids, chemicals, foods and pharmaceuticals.

Crimp collars for all True ID fittings are sold separately.

Specifications for Variant SKU: FJR-T04 Dixon
Series:	FJR-T Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female JIC, 1/4in Hose Barb
Material(s):	316 Stainless Steel
Special Properties:	Swivel
Compatible with the following Series:	WOC-T Series \| BOC-T Series \| WTB-T Series

Use:
For use with True I.D. PTFE hoses.

Carbon Steel Part Number	316 Stainless Steel Part Number	Size	Crimp Collars for Convoluted Hose		Crimp Collars for Smooth Bore Hose
Carbon Steel Part Number	316 Stainless Steel Part Number	Size	Carbon Steel	304 Stainless Steel	Carbon Steel	304 Stainless Steel
FJC-T04	FJR-T04	1/4"	CSC-T04-1	SSC-T04-1	CSC-T04-2	SSC-T04-2
-	FJR-T06	3/8"	CSC-T06-1	SSC-T06-1	CSC-T06-2	SSC-T06-2
FJC-T08	FJR-T08	1/2"	CSC-T08-1	SSC-T08-1	CSC-T08-2	SSC-T08-2
FJC-T12	FJR-T12	3/4"	CSC-T12-1	SSC-T12-1	CSC-T12-2	SSC-T12-2
FJC-T16	FJR-T16	1"	CSC-T16-1	SSC-T16-1	CSC-T16-2	SSC-T16-2
FJC-T20	FJR-T20	1-1/4"	CSC-T20-1	SSC-T20-1	-	-
FJC-T24	FJR-T24	1-1/2"	CSC-T24-1	SSC-T24-1	CSC-T24-2	-
FJC-T32	FJR-T32	2"	CSC-T32-1	SSC-T32-1	-	-

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
