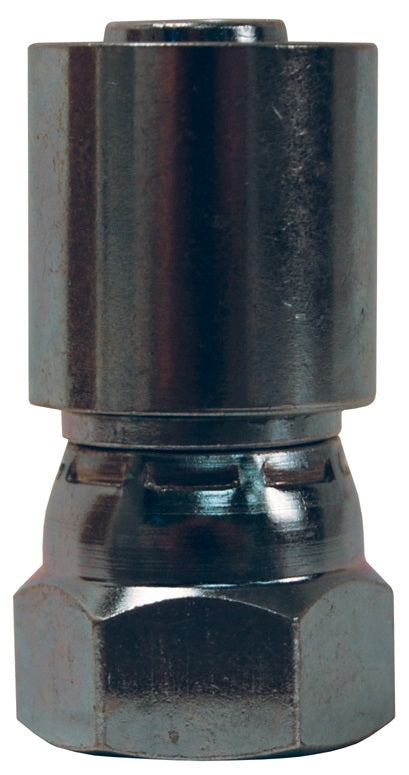

FJC-T12 by Dixon Valve | True I.D. PTFE Hose Fitting | 3/4" Female JIC Swivel | Carbon Steel

FJC-T12 by Dixon Valve | True I.D. PTFE Hose Fitting | 3/4" Female JIC Swivel | Carbon Steel

Save $10.43 Save $10.43
$26.08
$26.08 - $26.08
$26.08
$15.65
$15.65 - $15.65
$15.65

Dixon Valve
True I.D. PTFE Hose Fitting | Female JIC Swivel

Suitable for conveying acids, chemicals, foods and pharmaceuticals.

Crimp collars for all True ID fittings are sold separately.
Specifications for Variant SKU: FJC-T12 Dixon
Series: FJC-T Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Female JIC, 3/4in Hose Barb
Material(s): Carbon Steel
Special Properties: Swivel
Compatible with the following Series: WOC-T Series  |   BOC-T Series  |   WTB-T Series
Use:
  • For use with True I.D. PTFE hoses.
Carbon Steel
Part Number		 316 Stainless Steel
Part Number		 Size Crimp Collars for Convoluted Hose Crimp Collars for Smooth Bore Hose
Carbon Steel 304 Stainless Steel Carbon Steel 304 Stainless Steel
FJC-T04 FJR-T04 1/4" CSC-T04-1 SSC-T04-1 CSC-T04-2 SSC-T04-2
- FJR-T06 3/8" CSC-T06-1 SSC-T06-1 CSC-T06-2 SSC-T06-2
FJC-T08 FJR-T08 1/2" CSC-T08-1 SSC-T08-1 CSC-T08-2 SSC-T08-2
FJC-T12 FJR-T12 3/4" CSC-T12-1 SSC-T12-1 CSC-T12-2 SSC-T12-2
FJC-T16 FJR-T16 1" CSC-T16-1 SSC-T16-1 CSC-T16-2 SSC-T16-2
FJC-T20 FJR-T20 1-1/4" CSC-T20-1 SSC-T20-1 - -
FJC-T24 FJR-T24 1-1/2" CSC-T24-1 SSC-T24-1 CSC-T24-2 -
FJC-T32 FJR-T32 2" CSC-T32-1 SSC-T32-1 - -
