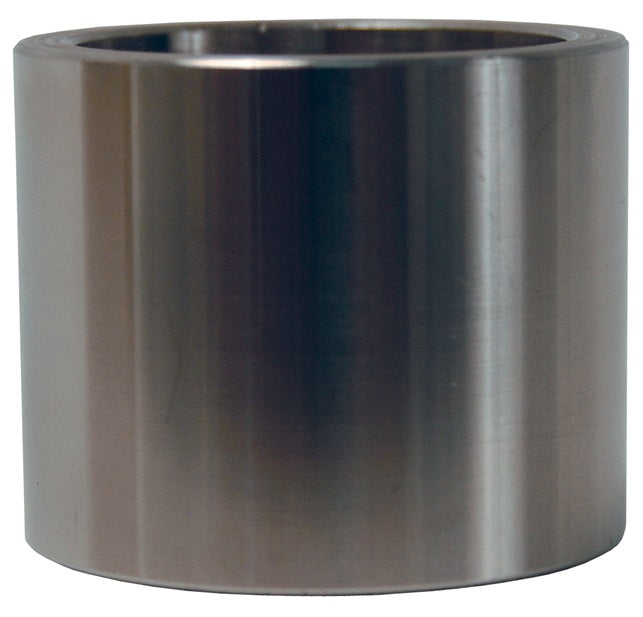

SSC-T32-1 by Dixon Valve | Crimp Collar for True I.D. Fittings | For use with Convoluted PTFE Hose | 2" Size | 304 Stainless Steel

Name: SSC-T32-1 by Dixon Valve | Crimp Collar for True I.D. Fittings | For use with Convoluted PTFE Hose | 2" Size | 304 Stainless Steel
Brand: Dixon
SKU: SSC-T32-1 Dixon
Price: 101.52 USD
Availability: InStock

Save $67.68

$169.20

$169.20 - $169.20

$169.20

$101.52

$101.52 - $101.52

$101.52

Dixon Valve
Crimp Collar for True I.D. Fittings | For use with Convoluted PTFE Hose

For True I.D. open pitch convoluted PTFE hose only.

Specifications for Variant SKU: SSC-T32-1 Dixon
Series:	SSC-T-1 Series
Shape (Orientation):	No Orientation
Material(s):	304 Stainless Steel
Compatible with the following Series:	FJC-T Series \| FJR-T Series \| MPC-T Series \| MPR-T Series \| TCR-T Series \| TCMR-T Series \| FRR-T Series \| FRRE-T Series

Features:
New design for ease of installation and improved appearance of finished crimp

Carbon Steel Part Number	304 Stainless Steel Part Number	Size
CSC-T04-1	SSC-T04-1	1/4"
CSC-T06-1	SSC-T06-1	3/8"
CSC-T08-1	SSC-T08-1	1/2"
CSC-T12-1	SSC-T12-1	3/4"
CSC-T16-1	SSC-T16-1	1"
CSC-T20-1	SSC-T20-1	1-1/4"
CSC-T24-1	SSC-T24-1	1-1/2"
CSC-T32-1	SSC-T32-1	2"

Dixon Valve & Coupling
