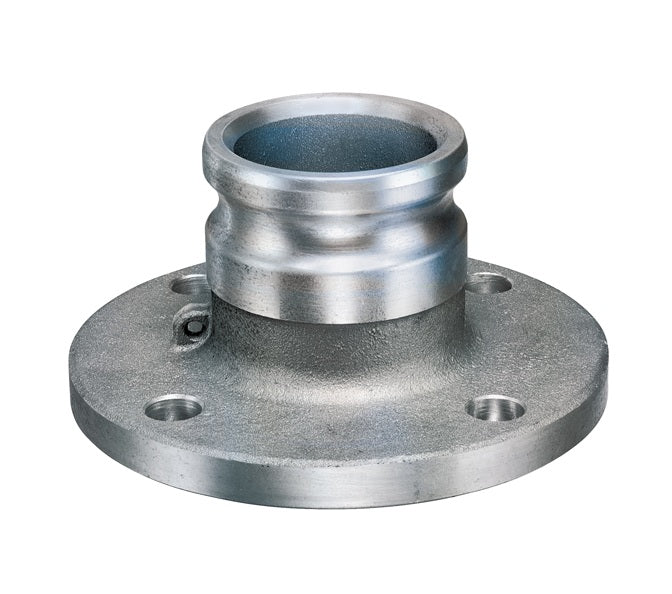

FL-AL-A600 by Kuriyama | FL-AL-A Series | Cam & Groove Adapter | 6" Adapter x 6" 150# ASA Flange | Aluminum

Name: FL-AL-A600 by Kuriyama | FL-AL-A Series | Cam & Groove Adapter | 6" Adapter x 6" 150# ASA Flange | Aluminum
Brand: Kuriyama
SKU: FL-AL-A600 Kuriyama
Price: 181.34 USD
Availability: InStock

Save $38.57

$219.91

$219.91 - $219.91

$219.91

$181.34

$181.34 - $181.34

$181.34

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | FL-AL-A Series | Adapter x 150# ASA Flange | Aluminum

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.

Specifications for Variant SKU: FL-AL-A600 Kuriyama
Series:	FL-AL-A Series
Shape (Orientation):	Straight
Ends Configuration:	6in Male Cam & Groove, 6in 150# Flange
Material(s):	Aluminum

What are the Applications?

Kuriyama Camlock Couplings are intended for use in many industrial applications.
Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

High quality design made to withstand rigorous applications found in industrial markets.
Aluminum alloy specially designed for high tensile strength and impact resistance.

What are the Materials?

ASTM aluminum alloy.
Complies with Mil-Spec A-A-59326 for interchangeability.

Part Number	Size (in)	Number of Bolt Holes	PSI Rating at 70°F	ASTM Specification	Weight Each (lbs)
FL-AL-A200	2"	4	250 PSI	B85 Grade 383	3.05 lbs
FL-AL-A300	3"	4	150 PSI	B85 Grade 383	3.86 lbs
FL-AL-A400	4"	8	150 PSI	B85 Grade 383	5.86 lbs
FL-AL-A600	6"	8	75 PSI	B85 Grade 383	9.92 lbs
FL-AL-A800	8"	8	50 PSI	B108-92 356	14.50 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
