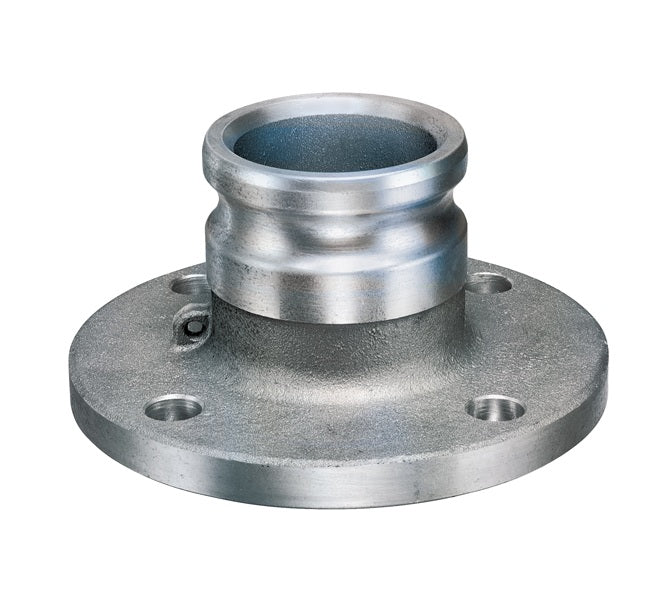

FL-AL-A800 by Kuriyama | FL-AL-A Series | Cam & Groove Adapter | 8" Adapter x 8" 150# ASA Flange | Aluminum

FL-AL-A800 by Kuriyama | FL-AL-A Series | Cam & Groove Adapter | 8" Adapter x 8" 150# ASA Flange | Aluminum

Save $75.41 Save $75.41
$532.63
$532.63 - $532.63
$532.63
$457.22
$457.22 - $457.22
$457.22

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | FL-AL-A Series | Adapter x 150# ASA Flange | Aluminum

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: FL-AL-A800 Kuriyama
Series: FL-AL-A Series
Shape (Orientation): Straight
Ends Configuration: 8in Male Cam & Groove, 8in 150# Flange
Material(s): Aluminum

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Aluminum alloy specially designed for high tensile strength and impact resistance.

What are the Materials?

  • ASTM aluminum alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability.
Part Number Size
(in)		 Number of
Bolt Holes		 PSI Rating
at 70°F		 ASTM Specification Weight
Each
(lbs)
FL-AL-A200 2" 4 250 PSI B85 Grade 383 3.05 lbs
FL-AL-A300 3" 4 150 PSI B85 Grade 383 3.86 lbs
FL-AL-A400 4" 8 150 PSI B85 Grade 383 5.86 lbs
FL-AL-A600 6" 8 75 PSI B85 Grade 383 9.92 lbs
FL-AL-A800 8" 8 50 PSI B108-92 356 14.50 lbs
