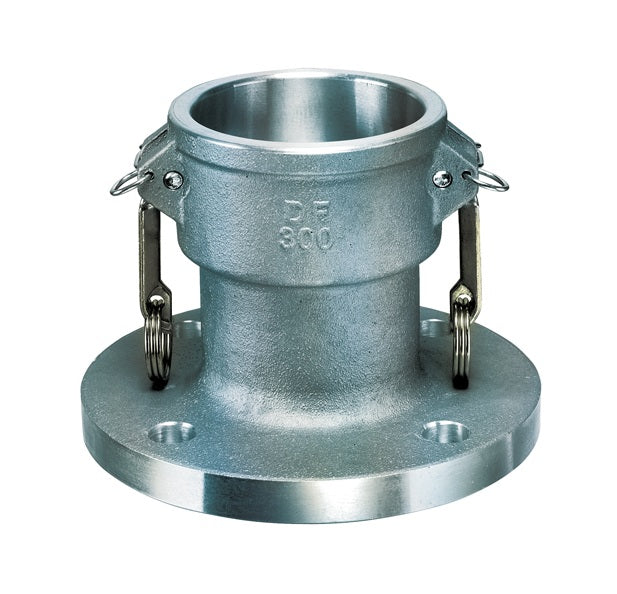

FL-AL-D300 by Kuriyama | FL-AL-D Series | Cam & Groove Adapter | 3" Coupler x 3" 150# ASA Flange | Aluminum

FL-AL-D300 by Kuriyama | FL-AL-D Series | Cam & Groove Adapter | 3" Coupler x 3" 150# ASA Flange | Aluminum

Save $22.21 Save $22.21
$116.79
$116.79 - $116.79
$116.79
$94.58
$94.58 - $94.58
$94.58

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | FL-AL-D Series | Coupler x 150# ASA Flange | Aluminum

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: FL-AL-D300 Kuriyama
Series: FL-AL-D Series
Shape (Orientation): Straight
Ends Configuration: 3in Female Cam & Groove, 3in 150# Flange
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Aluminum alloy specially designed for high tensile strength and impact resistance.
  • Supplied with forged brass handles which results in less wear on connecting parts.

What are the Materials?

  • ASTM aluminum alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability.
  • Forged brass handles.
  • Zinc-plated carbon steel handle pins, pull rings and safety clips.
  • Buna-N gasket included.
Part Number Size
(in)		 Number of
Bolt Holes		 PSI Rating
at 70°F		 ASTM Specification Weight
Each
(lbs)
FL-AL-D200 2" 4 250 PSI B85 Grade 383 2.35 lbs
FL-AL-D300 3" 4 150 PSI B85 Grade 383 5.07 lbs
FL-AL-D400 4" 8 150 PSI B85 Grade 383 7.94 lbs
FL-AL-D600 6" 8 75 PSI B85 Grade 383 12.89 lbs
FL-AL-D800 8" 8 50 PSI B108-92 356 16.50 lbs
