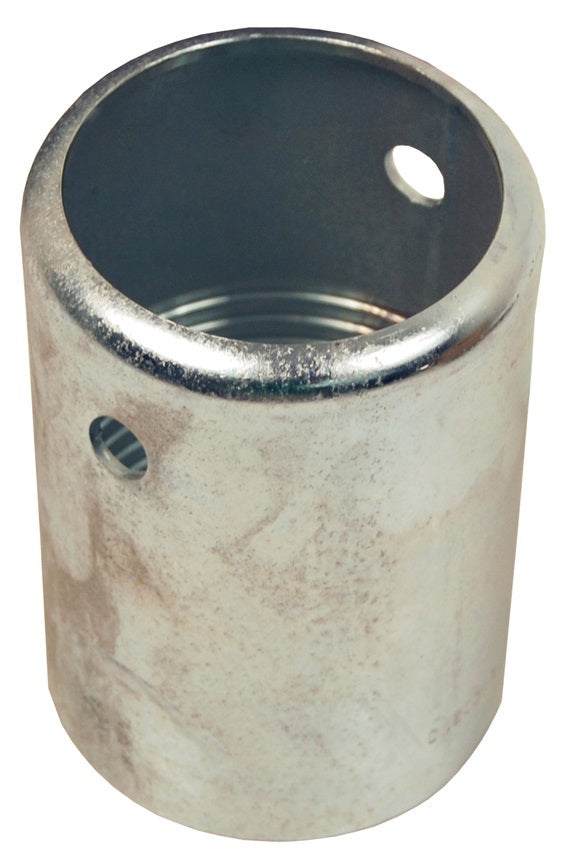

FL32-3 by Dixon Valve | Holedall® External Swage Ferrule | Long | 2" Hose ID | For Hose OD: From 2-49/64" to 2-56/64" | Plated Carbon Steel

FL32-3 by Dixon Valve | Holedall® External Swage Ferrule | Long | 2" Hose ID | For Hose OD: From 2-49/64" to 2-56/64" | Plated Carbon Steel

Save $4.86 Save $4.86
$43.75
$43.75 - $43.75
$43.75
$38.89
$38.89 - $38.89
$38.89

Dixon Valve
Holedall® External Swage Ferrule

Recommended for use on most one and two wire braid reinforced hoses, fiber reinforced (braided or spiraled) with or without helical wire such as:

  • Oil and suction discharge hose
  • Barge and dock loading and unloading hose
  • L.P. gas hose
  • Anhydrous ammonia hose
  • Acid chemical hose
  • High pressure air and water hose
Specifications for Variant SKU: FL32-3 Dixon
Brand: Holedall
Series: Style FL
Shape (Orientation): No Orientation
Material(s): Plated Carbon Steel
Special Properties: Long
Compatible with the following Series: TML Style  |   TGL Style  |   TPL Style
Features:
  • The coupling system requires no bolts and results in a clean coupling with no protrusions.
  • The Holedall coupling provides long-lasting efficiency and safety.
Use:
  • The selection of ferrules is very important to achieve the proper coupling-to-hose assembly.
  • Style F ferrules are used with all standard length External Swage stems: TM, TMR, TP, TPR, TG and TGR styles.
  • Style FL ferrules are extra long and are used with all long style External Swage stems: TML, TGL and TPL styles.
How It Works:
  • The hydraulic swaging of the coupling to the hose is accomplished by pushing the ferrule through a die which reduces the ferrule OD, thus providing a 360° uninterrupted compression band around the hose.
  • A hydraulic ram is the only piece of machinery necessary to accomplish the coupling.
  • Ferrules can be swaged or crimped.
Safety Notes:
  • Dixon Holedall stems and ferrules are specifically designed to be used together as a coupling system.
  • Due to differences in dimensions and tolerances, for safety reasons, do not use other manufacturer's stems or ferrules with Dixon Holedall products.
  • Do not use a wrench or vice on ferrule.
  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
  • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations. Consult Dixon for recommendations on usage.
  • Externally swaged Holedall couplings, to perform satisfactorily, must be applied properly in accordance with Dixon's assembly procedures, using correct die and ferrule for that.
  • particular hose end OD. Dixon's Die and Ferrule Recommendation Guide is to be used to select correct dies and ferrules. Consult Dixon if you do not have an updated Die and Ferrule Recommendation Guide.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended. Consult the Compatibility Chart or contact Dixon for material compatibility.
  • For applications other than the ones list, please consult Dixon.
Plated Carbon Steel
Part Number		 Plated Carbon Steel
Long Style
Part Number		 Hose ID Hose OD
From To
F20-1 FL20-1 1-1/4" 1-44/64" 1-48/64"
F20-2 FL20-2 1-1/4" 1-49/64" 1-56/64"
F20-3 FL20-3 1-1/4" 1-57/64" 2"
F20-4 - 1-1/4" 2-1/64" 2-8/64"
F24-1 FL24-1 1-1/2" 1-58/64" 2"
F24-2 FL24-2 1-1/2" 2-1/64" 2-8/64"
F24-3 FL24-3 1-1/2" 2-9/64" 2-16/64"
F24-5 - 1-1/2" 2-25/64" 2-32/64"
F32-1 FL32-1 2" 2-28/64" 2-40/64"
F32-2 FL32-2 2" 2-41/64" 2-48/64"
F32-3 FL32-3 2" 2-49/64" 2-56/64"
F32-4 FL32-4 2" 2-57/64" 3-2/64"
F40-1 FL40-1 2-1/2" 2-62/64" 3-8/64"
F40-2 FL40-2 2-1/2" 3-9/64" 3-16/64"
F40-3 FL40-3 2-1/2" 3-17/64" 3-24/64"
F40-4 - 2-1/2" 3-25/64" 3-32/64"
F40-5 - 2-1/2" 3-33/64" 3-40/64"
F48-1 FL48-1 3" 3-30/64" 3-40/64"
F48-2 FL48-2 3" 3-41/64" 3-48/64"
F48-3 FL48-3 3" 3-49/64" 3-56/64"
F48-4 FL48-4 3" 3-57/64" 4"
F48-5 FL48-5 3" 4-1/64" 4-8/64"
F64-Z* FL64-Z* 4" 4-30/64" 4-39/64"
F64-1 FL64-1 4" 4-40/64" 4-44/64"
F64-2 FL64-2 4" 4-45/64" 4-52/64"
F64-3 FL64-3 4" 4-53/64" 4-60/64"
F64-4 FL64-4 4" 4-61/64" 5-4/64"
F64-5 FL64-5 4" 5-5/64" 5-12/64"
F64-6 FL64-6 4" 5-13/64" 5-20/64"
F64-7 FL64-7 4" 5-21/64" 5-28/64"
- FL64-8 4" 5-29/64" 5-36/64"
F80-1 - 5" 5-56/64" 5-60/64"
F80-2 - 5" 5-61/64" 6-4/64"
F80-3 - 5" 6-5/64" 6-12/64"
F96-Z* FL96-Z* 6" 6-44/64" 6-63/64"
F96-1 FL96-1 6" 7" 7-4/64"
F96-2 FL96-2 6" 7-5/64" 7-12/64"
F96-3 FL96-3 6" 7-13/64" 7-20/64"
F96-4 - 6" 7-21/64" 7-28/64"
F96-5 FL96-5 6" 7-29/64" 7-36/64"
F96-7 FL96-7 6" 7-45/64" 7-52/64"
- FL96-9 6" 7-61/64" 8"
F128-X* - 8" 8-33/64" 8-40/64"
F128-Y - 8" 9-5/64" 9-16/64"
F128-1 - 8" 9-17/64" 9-24/64"
F128-2 - 8" 9-25/64" 9-32/64"
F128-3 - 8" 9-33/64" 9-40/64"
F128-4 - 8" 9-41/64" 9-48/64"
F128-6 - 8" 9-57/64" 10"
F160-1 - 10" 11-32/64" 11-44/64"
F160-2 - 10" 11-45/64" 11-60/64"

* Requires use with special stems.
