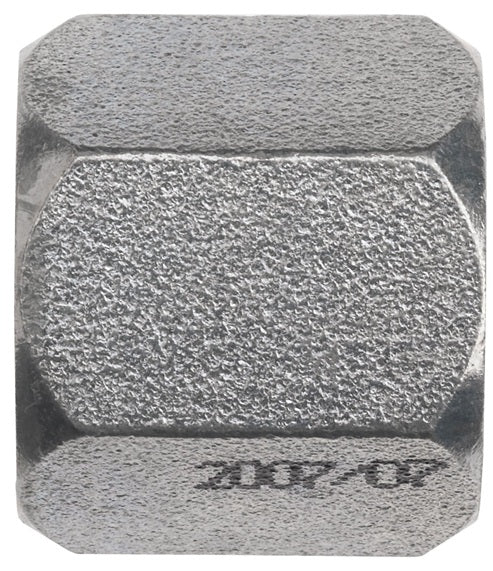

FLC0318-20 by Dixon Valve | Flareless Bite Type Fitting | Nut | 1-1/4" Tube OD | Steel

FLC0318-20 by Dixon Valve | Flareless Bite Type Fitting | Nut | 1-1/4" Tube OD | Steel

Save $8.80 Save $8.80
$22.00
$22.00 - $22.00
$22.00
$13.20
$13.20 - $13.20
$13.20

Dixon Valve
Flareless Bite Type Fitting | Nut

Well-suited for a variety of processing and general industry hydraulic applications.

Fittings are suitable for sub-zero through elevated temperature applications.
Specifications for Variant SKU: FLC0318-20 Dixon
Series: FLC0318 Series
Shape (Orientation): No Orientation
Material(s): Steel
Applications:
  • Chemical, pulp and paper, oil and gas refineries, military, air compressors and machine tools.
Features:
  • 3 piece design including only one ferrule eliminates possible make-up errors that may occur using a twin ferrule tube fitting.
  • Minimal risk of improper assembly as the ferrule visibly bites into the tubing which allows installer to visually inspect the bite quality.
Material:
  • Steel.
Approvals:
  • Exceeds Military (MIL F18866) and SAE J514 standards
Specifications:
  • Temperature rating is limited by the material chosen.
  • Pressure ratings are determined by the size (O.D.) and wall thickness (inches/mm) of the tubing on which they are to be installed.
Assembly Instructions:
  • 1. Cut, deburr, and clean tubing.
  • 2. Pre-set ferrule onto tubing.
  • 3. Inspect ferrule bite in tubing by disassembling the fitting and visually inspecting the deburred end of tube for slight indentation.
  • 4. Finger tighten nut and then further wrench tighten nut another 1/3 to 1/2 turn.
Part Number Tube O.D.
FLC0318-02 1/8"
FLC0318-03 3/16"
FLC0318-04 1/4"
FLC0318-05 5/16"
FLC0318-06 3/8"
FLC0318-08 1/2"
FLC0318-10 5/8"
FLC0318-12 3/4"
FLC0318-16 1"
FLC0318-20 1-1/4"
FLC0318-24 1-1/2"
