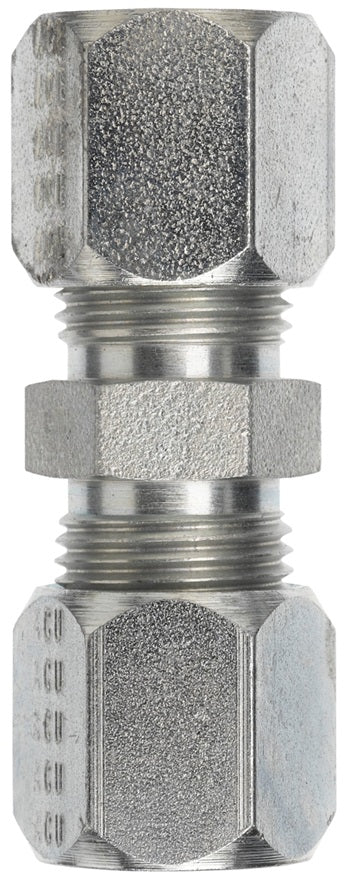

FLC2403-06 by Dixon Valve | Flareless Bite Type Fitting | Tube Union | 3/8" Male Tube x 3/8" Male Tube | Steel

FLC2403-06 by Dixon Valve | Flareless Bite Type Fitting | Tube Union | 3/8" Male Tube x 3/8" Male Tube | Steel

$10.26 - $10.26
$10.26
$11.40
$11.40 - $11.40
$11.40

Dixon Valve
Flareless Bite Type Fitting | Tube Union | Male Tube x Male Tube

Well-suited for a variety of processing and general industry hydraulic applications.

Fittings are suitable for sub-zero through elevated temperature applications.
Specifications for Variant SKU: FLC2403-06 Dixon
Series: FLC2403 Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Tube Compression, 3/8in Tube Compression, Some Ends Match
Material(s): Steel
Applications:
  • Chemical, pulp and paper, oil and gas refineries, military, air compressors and machine tools.
Features:
  • 3 piece design including only one ferrule eliminates possible make-up errors that may occur using a twin ferrule tube fitting.
  • Minimal risk of improper assembly as the ferrule visibly bites into the tubing which allows installer to visually inspect the bite quality.
Material:
  • Steel.
Approvals:
  • Exceeds Military (MIL F18866) and SAE J514 standards
Specifications:
  • Temperature rating is limited by the material chosen.
  • Pressure ratings are determined by the size (O.D.) and wall thickness (inches/mm) of the tubing on which they are to be installed.
Assembly Instructions:
  • 1. Cut, deburr, and clean tubing.
  • 2. Pre-set ferrule onto tubing.
  • 3. Inspect ferrule bite in tubing by disassembling the fitting and visually inspecting the deburred end of tube for slight indentation.
  • 4. Finger tighten nut and then further wrench tighten nut another 1/3 to 1/2 turn.
Part Number Tube O.D.
FLC2403-02 1/8"
FLC2403-03 3/16"
FLC2403-04 1/4"
FLC2403-05 5/16"
FLC2403-06 3/8"
FLC2403-08 1/2"
FLC2403-10 5/8"
FLC2403-12 3/4"
FLC2403-16 1"
FLC2403-20 1-1/4"
FLC2403-24 1-1/2"
