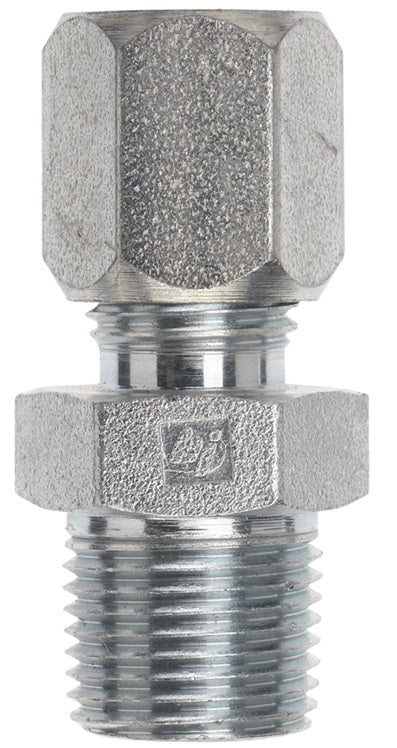

FLC2404-06-08 by Dixon Valve | Flareless Bite Type Fitting | 3/8" Male Tube x 1/2" Male NPTF | Steel

FLC2404-06-08 by Dixon Valve | Flareless Bite Type Fitting | 3/8" Male Tube x 1/2" Male NPTF | Steel

$7.75 - $7.75
$7.75
$8.61
$8.61 - $8.61
$8.61

Dixon Valve
Flareless Bite Type Fitting | Male Tube x Male NPTF

Well-suited for a variety of processing and general industry hydraulic applications.

Fittings are suitable for sub-zero through elevated temperature applications.
Specifications for Variant SKU: FLC2404-06-08 Dixon
Series: FLC2404 Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Tube Compression, 1/2in Male NPTF
Material(s): Steel
Applications:
  • Chemical, pulp and paper, oil and gas refineries, military, air compressors and machine tools.
Features:
  • 3 piece design including only one ferrule eliminates possible make-up errors that may occur using a twin ferrule tube fitting.
  • Minimal risk of improper assembly as the ferrule visibly bites into the tubing which allows installer to visually inspect the bite quality.
Material:
  • Steel.
Approvals:
  • Exceeds Military (MIL F18866) and SAE J514 standards
Specifications:
  • Temperature rating is limited by the material chosen.
  • Pressure ratings are determined by the size (O.D.) and wall thickness (inches/mm) of the tubing on which they are to be installed.
Assembly Instructions:
  • 1. Cut, deburr, and clean tubing.
  • 2. Pre-set ferrule onto tubing.
  • 3. Inspect ferrule bite in tubing by disassembling the fitting and visually inspecting the deburred end of tube for slight indentation.
  • 4. Finger tighten nut and then further wrench tighten nut another 1/3 to 1/2 turn.
Part Number Tube O.D. Male NPTF
FLC2404-02 1/8" 1/8"
FLC2404-02-04 1/8" 1/4"
FLC2404-03-02 3/16" 1/8"
FLC2404-04-02 1/4" 1/8"
FLC2404-04 1/4" 1/4"
FLC2404-04-06 1/4" 3/8"
FLC2404-04-08 1/4" 1/2"
FLC2404-05-02 5/16" 1/8"
FLC2404-05-04 5/16" 1/4"
FLC2404-06-02 3/8" 1/8"
FLC2404-06-04 3/8" 1/4"
FLC2404-06 3/8" 3/8"
FLC2404-06-08 3/8" 1/2"
FLC2404-08-04 1/2" 1/4"
FLC2404-08-06 1/2" 3/8"
FLC2404-08 1/2" 1/2"
FLC2404-08-12 1/2" 3/4"
FLC2404-10-06 5/8" 3/8"
FLC2404-10-08 5/8" 1/2"
FLC2404-10-12 5/8" 3/4"
FLC2404-12-08 3/4" 1/2"
FLC2404-12 3/4" 3/4"
FLC2404-12-16 3/4" 1"
FLC2404-16-12 1" 3/4"
FLC2404-16 1" 1"
FLC2404-16-20 1" 1-1/4"
FLC2404-20-12 1-1/4" 3/4"
FLC2404-20 1-1/4" 1-1/4"
FLC2404-24 1-1/2" 1-1/2"
