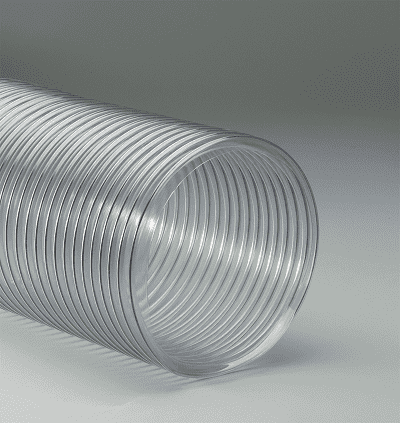

10-ADC-25 Flexaust ADC 10 inch Air and Fume Duct Hose - 25ft

10-ADC-25 by Flexaust | #8061100025 | ADC | Air and Fume Duct Hose | 10 inch | 25ft

Save $142.50

$356.25

$356.25 - $356.25

$356.25

$213.75

$213.75 - $213.75

$213.75

Flexaust Flexadux ADC Air and Fume Duct Hose Very light weight PVC hose reinforced with a spring steel wire helix.

Package Quantity: 25 FT

Specifications for Variant SKU: 10-ADC-25 Flexaust \| 25 \|
Brand:	Flexadux PV
Series:	ADC
Hose Color(s):	Clear/Semi-Clear
Internal Diameter:	10in
Tubing Construction:	PVC

SPECIFICATIONS

Other Features:
Applications:	Air Duct Cleaning, Fertilizer Broadcasting, Flight Simulators, Food Grade, Furnace Duct Cleaning, Meat Packing	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Very light weight PVC hose
Reinforcement:	Spring steel wire helix	Cover:	N/A
Temperature Range:	20 deg. F to 160 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Great compressibility. Excellent flexibility with tight bending characteristics. Good chemical & moisture resistance. Manufactured with FDA acceptable materials. Good for positive pressure applications

Part Number 25 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight - 25ft (Lbs/Ft)
ADC 6in	6"	.015"	3.45"	9:1	4.17	4.26	11.25 lbs
ADC 8in	8"	.015"	4.62"	9:1	1.73	3.18	15 lbs
ADC 10in	10"	.015"	5.76"	9:1	.89	2.55	18.75 lbs
ADC 12in	12"	.015"	6.9"	9:1	.52	2.13	22.425 lbs
ADC 14in	14"	.015"	8.04"	9:1	.33	1.83	26.1 lbs
ADC 16in	16"	.015"	9"	9:1	.2	1.1	35 lbs
ADC 18in	18"	.015"	10"	9:1	.16	1	31.25 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
