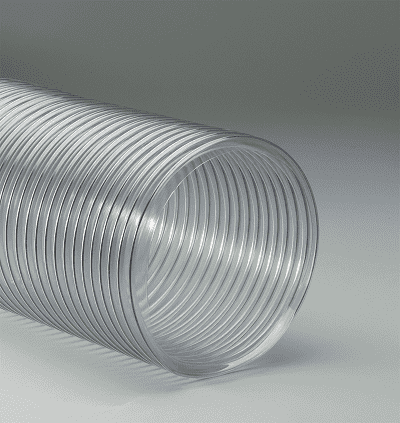

6-ADC-25 Flexaust #8061060025 ADC 6 inch Air and Fume Duct Hose - 25ft

  • $103.33

SPECIFICATIONS

Applications: Air Duct Cleaning, Fertilizer Broadcasting, Flight Simulators, Food Grade, Furnace Duct Cleaning, Meat Packing SAE Rating: N/A
Other Ratings: N/A Tube: Very light weight PVC hose
Reinforcement: Spring steel wire helix Cover: N/A
Temperature Range: 20 deg. F to 160 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Great compressibility.
  • Excellent flexibility with tight bending characteristics.
  • Good chemical & moisture resistance.
  • Manufactured with FDA acceptable materials.
  • Good for positive pressure applications
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
ADC 6in 6" .015" 3.45" 9:1 4.17 4.26 11.25 lbs
ADC 8in 8" .015" 4.62" 9:1 1.73 3.18 15 lbs
ADC 10in 10" .015" 5.76" 9:1 .89 2.55 18.75 lbs
ADC 12in 12" .015" 6.9" 9:1 .52 2.13 22.425 lbs
ADC 14in 14" .015" 8.04" 9:1 .33 1.83 26.1 lbs
ADC 16in 16" .015" 9" 9:1 .2 1.1 35 lbs
ADC 18in 18" .015" 10" 9:1 .16 1 31.25 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
