24-Arctic-Duct-3-25 by Flexaust | #4862400025 | Arctic Duct 3 | 24 Inches | 25ft

Save $161.48 Save $161.48
Original price $1,614.81
Original price $1,614.81 - Original price $1,614.81
Original price $1,614.81
Current price $1,453.33
$1,453.33 - $1,453.33
Current price $1,453.33

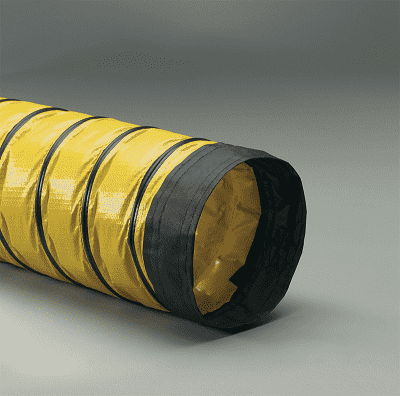

Flexaust Springflex Arctic Duct 3 Air Duct Hose

Two single-ply yellow PVC vinyl coated polyester fabric plies protecting an insulation barrier reinforced with a spring steel wire helix & black external PVC wearstrip.

Ships with Sewn Cuff shown in image. Call 330-535-7105 for information on End Finish Pricing and Availability.

Package Quantity: 25 FT

Specifications for Variant SKU: 24-Arctic-Duct-3-25 Flexaust | 25 |
Brand: Springflex
Series: Arctic Duct 3
Hose Color(s): Black & Yellow
Internal Diameter: 24in
Tubing Construction: PVC Coated Polyester
Springflex End Finishes Ships without Sewn Cuff shown in image. Call 330-535-7105 for information on End Finish Pricing and Availability.
Sewn Cuff Standard/Enclosed
Belted Cuff
Funnel Cuff Belt Loop & Pull Tabs Wire Rope/Nylon Ring Sto-Sack

SPECIFICATIONS

Applications: A/C Ventilation, Chiller, Function Tent HVAC, HVAC, Plastic Bag Machines, Thermo Insulated Heating/Cooling SAE Rating: N/A
Other Ratings: N/A Tube: Two single-ply yellow PVC vinyl coated polyester fabric plies protecting an insulation barrier
Reinforcement: Spring steel wire helix & black external PVC wearstrip Cover: N/A
Temperature Range: -20 deg. F to 180 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Ideal use for both permanent & mobile air conditioning applications.
  • PVC material resists ozone, UV rays, & moisture.
  • Compressibility allows for convenient storage.
  • Wearstrip offers additional external abrasion & drag resistance.
  • Other Arctic Duct constructions available.
  • Manufactured with flame retardant materials.
  • Made with sewn cuff on each end.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
Arctic Duct 3 4in 4" N/A N/A N/A N/A N/A N/A
Arctic Duct 3 5in 5" N/A N/A N/A N/A N/A N/A
Arctic Duct 3 6in 6" N/A 3.57" 5:1 5.5 3.3 14.625 lbs
Arctic Duct 3 8in 8" N/A 4.7" 5:1 6 2.47 22.75 lbs
Arctic Duct 3 10in 10" N/A 6" 5:1 3 1.98 28 lbs
Arctic Duct 3 12in 12" N/A 8" 5:1 1.8 1.66 33.5 lbs
Arctic Duct 3 14in 14" N/A 8.5" 5:1 1.17 1.42 37.95 lbs
Arctic Duct 3 16in 16" N/A 9.6" 5:1 .8 1.25 43.175 lbs
Arctic Duct 3 18in 18" N/A 11" 5:1 .6 1.11 48.4 lbs
Arctic Duct 3 20in 20" N/A 12" 5:1 .4 .851 53.625 lbs
Arctic Duct 3 24in 24" N/A 14" 5:1 .25 .85 64.1 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
