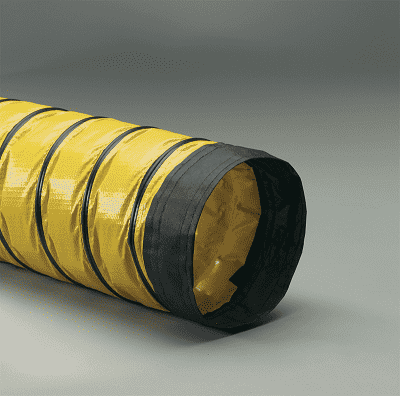

5-Arctic-Duct-3-25 Flexaust #4860500025 Arctic Duct 3 - 5 inch Air Duct Hose - 25ft

  • $385.33

SPECIFICATIONS

Applications: A/C Ventilation, Chiller, Function Tent HVAC, HVAC, Plastic Bag Machines, Thermo Insulated Heating/Cooling SAE Rating: N/A
Other Ratings: N/A Tube: Two single-ply yellow PVC vinyl coated polyester fabric plies protecting an insulation barrier
Reinforcement: Spring steel wire helix & black external PVC wearstrip Cover: N/A
Temperature Range: -20 deg. F to 180 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Ideal use for both permanent & mobile air conditioning applications.
  • PVC material resists ozone, UV rays, & moisture.
  • Compressibility allows for convenient storage.
  • Wearstrip offers additional external abrasion & drag resistance.
  • Other Arctic Duct constructions available.
  • Manufactured with flame retardant materials.
  • Made with sewn cuff on each end.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
Arctic Duct 3 4in 4" N/A N/A N/A N/A N/A N/A
Arctic Duct 3 5in 5" N/A N/A N/A N/A N/A N/A
Arctic Duct 3 6in 6" N/A 3.57" 5:1 5.5 3.3 14.625 lbs
Arctic Duct 3 8in 8" N/A 4.7" 5:1 6 2.47 22.75 lbs
Arctic Duct 3 10in 10" N/A 6" 5:1 3 1.98 28 lbs
Arctic Duct 3 12in 12" N/A 8" 5:1 1.8 1.66 33.5 lbs
Arctic Duct 3 14in 14" N/A 8.5" 5:1 1.17 1.42 37.95 lbs
Arctic Duct 3 16in 16" N/A 9.6" 5:1 .8 1.25 43.175 lbs
Arctic Duct 3 18in 18" N/A 11" 5:1 .6 1.11 48.4 lbs
Arctic Duct 3 20in 20" N/A 12" 5:1 .4 .851 53.625 lbs
Arctic Duct 3 24in 24" N/A 14" 5:1 .25 .85 64.1 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
