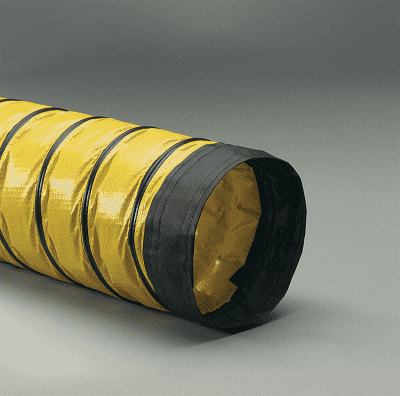

4-Arctic-Duct-U-25 Flexaust #5080400000 Arctic Duct U 4 inch Air Duct Hose - 25ft

  • $456.33

SPECIFICATIONS

Applications: Function Tent HVAC, HVAC, Thermo Insulated Heating/Cooling SAE Rating: N/A
Other Ratings: N/A Tube: Two single-ply yellow neoprene coated polyester fabric plies protecting an insulation barrier
Reinforcement: Spring steel wire helix & black external PVC coated polyester wearstrip Cover: N/A
Temperature Range: -40 deg. F to 250 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Good for air handling applications.
  • High tensile strength.
  • Wearstrip offers additional external abrasion & drag resistance.
  • Compressibility allows for convenient storage.
  • Manufactured with flame retardant materials.
  • Made with sewn cuff on each end.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
Arctic Duct U 4in 4" N/A 2.75" 3:1 8 8.2 16.25 lbs
Arctic Duct U 8in 8" N/A 5" 5:1 6.1 3.5 22.375 lbs
Arctic Duct U 10in 10" N/A 6" 5:1 3.16 2.78 27.25 lbs
Arctic Duct U 12in 12" N/A 7.25" 5:1 1.8 2.3 32.5 lbs
Arctic Duct U 14in 14" N/A 8.5" 5:1 1.2 2 37.2 lbs
Arctic Duct U 16in 16" N/A 9.6" 5:1 .78 1.74 42.175 lbs
Arctic Duct U 18in 18" N/A 10.8" 5:1 .55 1.55 47.15 lbs
Arctic Duct U 20in 20" N/A 12" 5:1 .4 1.4 52.1 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
