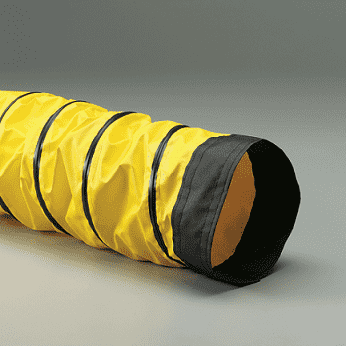

12-AWP-W-25 Flexaust #3861200025 AWP-W (AWPW) 12 inch Air Duct Hose - 25ft

  • $366.67

SPECIFICATIONS

Applications: Aircraft, Fans & Blowers, Flame Retardant, Humidity Control, Mining, Utility Blowers SAE Rating: N/A
Other Ratings: N/A Tube: Single-ply yellow acrylic coated polyester fabric
Reinforcement: Spring steel wire helix & black external PVC wearstrip Cover: N/A
Temperature Range: -20 deg. F to 325 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Ideal for moving large volumes of air in portable or permanent ventilation/exhaust systems.
  • Wearstrip offers additional external abrasion & drag resistance.
  • Great compressibility.
  • Retractability allows for convenient storage & easy transport in a fraction of its fully extended length.
  • Listed as UL 94V-0 flame retardant.
  • Shown with optional cuff.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
AWP-W 8in 8" N/A 5" 10:1 N/A 3 10 lbs
AWP-W 10in 10" N/A 6" 10:1 N/A 2 15 lbs
AWP-W 12in 12" N/A 7.5" 10:1 N/A 1.5 17.5 lbs
AWP-W 14in 14" N/A 8.5" 10:1 N/A 1.2 20 lbs
AWP-W 16in 16" N/A 9.5" 10:1 N/A 1 22.5 lbs
AWP-W 18in 18" N/A 10.5" 10:1 N/A .8 27.5 lbs
AWP-W 20in 20" N/A 11.5" 10:1 N/A .7 30 lbs
AWP-W 24in 24" N/A 14" 10:1 N/A .5 35 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
