8-AWP-W-25 Flexaust AWP-W (AWPW) 8 inch Air Duct Hose - 25ft

8-AWP-W-25 by Flexaust | #3860800025 | AWP-W Series | Air Duct Hose | 8 inch | 25ft

Save $32.41 Save $32.41
$324.08
$324.08 - $324.08
$324.08
$291.67
$291.67 - $291.67
$291.67

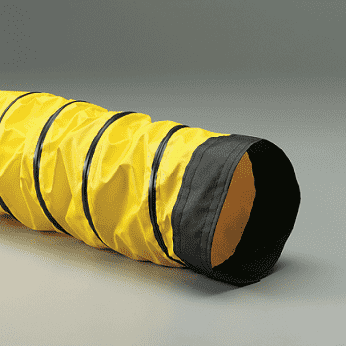

Flexaust Springflex AWP-W (AWPW) Air Duct Hose

Single-ply yellow acrylic coated polyester fabric hose reinforced with a spring steel wire helix & black external PVC wearstrip.

Ships without Sewn Cuff shown in image. Call 330-535-7105 for information on End Finish Pricing and Availability.

Package Quantity: 25 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 8-AWP-W-25 Flexaust | 25 |
Brand: Springflex
Series: AWP-W
Hose Color(s): Black & Yellow
Internal Diameter: 8in
Tubing Construction: Acrylic Coated Polyester
Springflex End Finishes Ships without Sewn Cuff shown in image. Call 330-535-7105 for information on End Finish Pricing and Availability.
Sewn Cuff Standard/Enclosed
Belted Cuff		 Funnel Cuff Belt Loop & Pull Tabs Wire Rope/Nylon Ring Sto-Sack

SPECIFICATIONS

Applications: Aircraft, Fans & Blowers, Flame Retardant, Humidity Control, Mining, Utility Blowers SAE Rating: N/A
Other Ratings: N/A Tube: Single-ply yellow acrylic coated polyester fabric
Reinforcement: Spring steel wire helix & black external PVC wearstrip Cover: N/A
Temperature Range: -20 deg. F to 325 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Ideal for moving large volumes of air in portable or permanent ventilation/exhaust systems.
  • Wearstrip offers additional external abrasion & drag resistance.
  • Great compressibility.
  • Retractability allows for convenient storage & easy transport in a fraction of its fully extended length.
  • Listed as UL 94V-0 flame retardant.
  • Shown with optional cuff.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
AWP-W 8in 8" N/A 5" 10:1 N/A 3 10 lbs
AWP-W 10in 10" N/A 6" 10:1 N/A 2 15 lbs
AWP-W 12in 12" N/A 7.5" 10:1 N/A 1.5 17.5 lbs
AWP-W 14in 14" N/A 8.5" 10:1 N/A 1.2 20 lbs
AWP-W 16in 16" N/A 9.5" 10:1 N/A 1 22.5 lbs
AWP-W 18in 18" N/A 10.5" 10:1 N/A .8 27.5 lbs
AWP-W 20in 20" N/A 11.5" 10:1 N/A .7 30 lbs
AWP-W 24in 24" N/A 14" 10:1 N/A .5 35 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
