9-Bendway-S-5 Flexaust Bendway S 9 inch Air and Fume Duct Hose - 5ft
9-Bendway-S-5 Flexaust Bendway S 9 inch Air and Fume Duct Hose - 5ft
9-Bendway-S-5 Flexaust Bendway S 9 inch Air and Fume Duct Hose - 5ft
9-Bendway-S-5 Flexaust Bendway S 9 inch Air and Fume Duct Hose - 5ft

9-Bendway-S-5 by Flexaust | #4970900005 | Bendway S | Air and Fume Duct Hose | 9 inch | 5ft

Save $75.20 Save $75.20
$188.00
$188.00 - $188.00
$188.00
$112.80
$112.80 - $112.80
$112.80

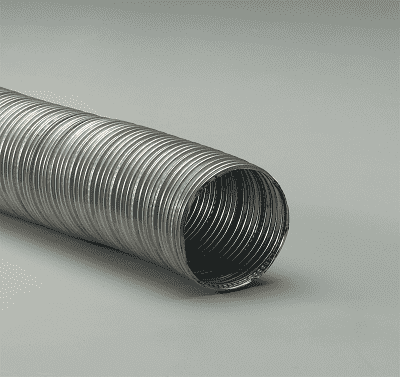

Flexaust Bendway® S Air and Fume Duct Hose Single-ply helically corrugated stainless steel alloy hose with a 4-ply finished seam that is folded flat and crimped for tightness and strength

Package Quantity: 5 FT

Specifications for Variant SKU: 9-Bendway-S-5 Flexaust | 5 |
Brand: Bendway
Series: Bendway S
Hose Color(s): Metallic
Internal Diameter: 9in
Tubing Construction: Stainless Steel Alloy

SPECIFICATIONS

Applications: Chemical Fume Extraction, Circuit Board Cooling, Fireplace Inserts, HVAC, Oil Mist Extraction SAE Rating: N/A
Other Ratings: N/A Tube: Single-ply helically corrugated stainless steel alloy
Reinforcement: Four-ply finished seam that is folded flat and crimped for tightness and strength Cover: N/A
Temperature Range: -400 deg. F to 800 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Light weight & hand bendable allowing for elbows & turns to be formed easily during installation.
  • Self-supporting construction allows for bends to stay in place.
  • Resists metal fatigue, weathering, & most corrosive fumes & chemicals.
  • Not recommended for continuous flexing.
Part Number 5 ft Reels Part Number 10 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 5ft (Lbs/Ft) Weight - 10ft (Lbs/Ft)
Bendway S 2in Bendway S 2in 2" .005" 2.1" N/A N/A N/A 0.85 lbs 1.7 lbs
Bendway S 3in Bendway S 3in 3" .005" 3.3" N/A N/A N/A 1.55 lbs 3.1 lbs
Bendway S 4in Bendway S 4in 4" .005" 4.3" N/A N/A N/A 1.75 lbs 3.5 lbs
Bendway S 5in Bendway S 5in 5" .005" 5.4" N/A N/A N/A 2.25 lbs 4.5 lbs
Bendway S 6in Bendway S 6in 6" .005" 6.5" N/A N/A N/A 2.7 lbs 5.4 lbs
Bendway S 7in Bendway S 7in 7" .005" 7.5" N/A N/A N/A 3.1 lbs 6.2 lbs
Bendway S 8in Bendway S 8in 8" .005" 8.7" N/A N/A N/A 3.2 lbs 6.4 lbs
Bendway S 9in Bendway S 9in 9" N/A N/A N/A N/A N/A N/A N/A
Bendway S 10in Bendway S 10in 10" .005" 10.8" N/A N/A N/A 4 lbs 8 lbs
Bendway S 12in Bendway S 12in 12" .005" 13" N/A N/A N/A 4.75 lbs 9.5 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
