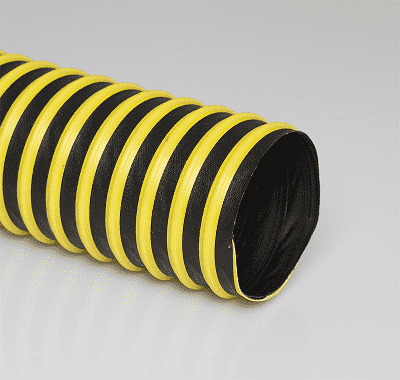

7-CWC-W-25 Flexaust #1110700025 CWC-W (CWCW) 7 inch Dust and Material Handling Hose - 25ft

  • $348.67

SPECIFICATIONS

Applications: Air Duct Cleaning, Bridge Cleaning Filtering, Flame Retardant, Furnace Duct Cleaning, Sand Blasting, Tractor Pull Exhaust SAE Rating: N/A
Other Ratings: N/A Tube: Double-ply black neoprene coated polyester fabric
Reinforcement: spring steel wire helix & yello external PVC coated polyester wearstrip Cover: N/A
Temperature Range: -40 deg. F to 250 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Wearstrip offers additional external abrasion & drag resistance
  • Good crush resistance & tensile strength.
  • Neoprene coating offers excellent abrasion & chemical resistance.
  • Listed as UL 94V-0 flame retardant.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
CWC-W 3in 3" N/A N/A N/A N/A N/A N/A
CWC-W 4in 4" N/A N/A N/A N/A N/A N/A
CWC-W 4.5in 4.5" N/A N/A N/A N/A N/A N/A
CWC-W 5in 5" N/A 3.6" 4:1 12 20 14 lbs
CWC-W 6in 6" N/A 3.9" 4:1 17 15 21.5 lbs
CWC-W 7in 7" N/A N/A N/A N/A N/A N/A
CWC-W 8in 8" N/A 7.5" 4:1 7.3 11 32.75 lbs
CWC-W 9in 9" N/A N/A N/A N/A N/A N/A
CWC-W 10in 10" N/A 8.4" 4:1 4 9 44.75 lbs
CWC-W 12in 12" N/A 9.8" 4:1 4.9 7 6.5 lbs
CWC-W 14in 14" N/A 11.5" 4:1 3.1 6 72.5 lbs
CWC-W 16in 16" N/A 13" 4:1 2.1 5 82.5 lbs
CWC-W 18in 18" N/A 14.5" 4:1 1.5 4 92.5 lbs
CWC-W 20in 20" N/A 16.3" 4:1 1.1 3 102.5 lbs
CWC-W 22in 22" N/A N/A N/A N/A N/A N/A
CWC-W 24in 24" N/A 20" 4:1 .6 2 122.5 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
