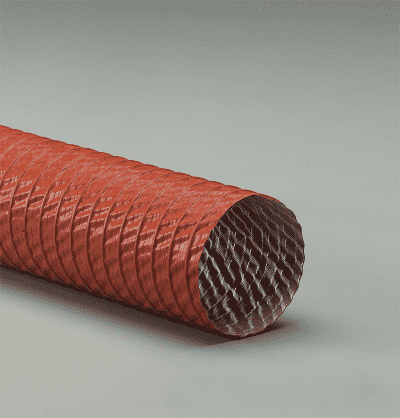

5-CWGS-25 Flexaust CWGS 5 inch Air and Fume Duct Hose - 25ft
5-CWGS-25 Flexaust CWGS 5 inch Air and Fume Duct Hose - 25ft
5-CWGS-25 Flexaust CWGS 5 inch Air and Fume Duct Hose - 25ft
5-CWGS-25 Flexaust CWGS 5 inch Air and Fume Duct Hose - 25ft

5-CWGS-25 by Flexaust | #2700500025 | CWGS | Air and Fume Duct Hose | 5 inch | 25ft

Save $367.00 Save $367.00
$917.50
$917.50 - $917.50
$917.50
$550.50
$550.50 - $550.50
$550.50

Flexaust Heat-Flex CWGS Air and Fume Duct Hose Single-ply iron oxide red silicone coated fiberglass fabric hose reinforced with a spring steel wire helix

Package Quantity: 25 FT

Specifications for Variant SKU: 5-CWGS-25 Flexaust | 25 |
Brand: Heat-Flex
Series: CWGS
Hose Color(s): Red
Internal Diameter: 5in
Tubing Construction: Silicone Coated Fiberglass

SPECIFICATIONS

Applications: Aircraft SAE Rating: N/A
Other Ratings: N/A Tube: Single-ply iron oxide red silicone coated fiberglass fabric
Reinforcement: Spring steel wire helix Cover: N/A
Temperature Range: -65 deg. F to 550 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Light weight & flexible.
  • Available in longer lengths than traditional mandrel-built hose.
  • Resistant to many oils & solvents, ozone, water, fungus & alkalis.
  • Not recommended for continuous flexing.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
CWGS 2in 2" N/A 1.4" 5:1 29 30 5.25 lbs
CWGS 2.5in 2.5" N/A 1.8" 5:1 24 30 7.25 lbs
CWGS 3in 3" N/A 2.1" 5:1 14 30 7.75 lbs
CWGS 3.5in 3.5" N/A 2.5" 5:1 9 30 9.75 lbs
CWGS 4in 4" N/A 2.7" 6.6:1 12 18 10 lbs
CWGS 4.5in 4.5" N/A 3" 6.6:1 8.5 16 12.25 lbs
CWGS 5in 5" N/A 3.3" 6.6:1 6 14 12.5 lbs
CWGS 6in 6" N/A 3.7" 6.6:1 5 7 13.5 lbs
CWGS 8in 8" N/A 4.9" 6.6:1 2 5 18.25 lbs
CWGS 10in 10" N/A 6.1" 6.6:1 1 4 22.75 lbs
CWGS 12in 12" N/A 7.3" 6.6:1 .7 .3 27 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
