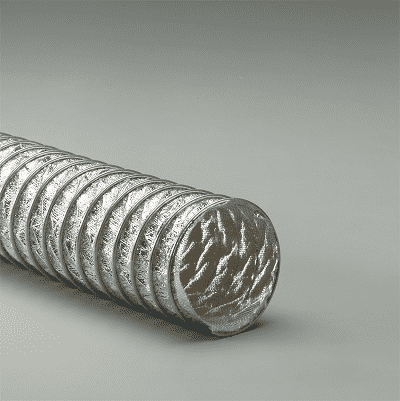

5-Flex-Lok-1050-25 Flexaust #1860500025 Flex-Lok 1050 5 inch Fume Duct Hose - 25ft

  • $1,403.67

SPECIFICATIONS

Applications: Aircraft, Brick Kilns, Diesel/Engine Exhaust, Exhaust Systems, Foundries, High Temperature, Jet Fuel Vapor Venting, Paper Mills, Rocket Support, Tractor Pull Exhaust, Welding Fume Extraction SAE Rating: N/A
Other Ratings: N/A Tube: Double-ply construction silver aluminum coated fiberglass fabric hose with a silver heat-resistant fiberglass liner
Reinforcement: Coated steel wire Cover: N/A
Temperature Range: -65 deg. F to 1050 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Fabric is locked around a coated steel wire by a metal strip formed into a clip.
  • Metal strip acts as a wearstrip and offers outstanding external abrasion resistance.
  • Extreme temperature resistance with excellent heat stability.
  • Extremely flexible & compressible with good flex characteristics.
  • Excellent flow characteristics.
  • Fiberglass liner increases tensile strength for a longer life cycle.
  • Excellent for reel & drop systems.
  • Ideal for engine & dynamometer testing & paper mill drying applications.
  • Negative pressure fan system with ambient air inlet recommended to maximize effectiveness and life of duct.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
Flex-Lok 1050 3in 3" N/A 2.5" 5:1 8 12 18.75 lbs
Flex-Lok 1050 4in 4" N/A 3" 5:1 6.1 10 21.25 lbs
Flex-Lok 1050 5in 5" N/A 3.5" 6:1 5.3 9 23.75 lbs
Flex-Lok 1050 6in 6" N/A 4.5" 6:1 4 7.9 25 lbs
Flex-Lok 1050 7in 7" N/A 5" 6:1 3.4 7.3 30 lbs
Flex-Lok 1050 8in 8" N/A 5.5" 6:1 3.1 6.9 32.5 lbs
Flex-Lok 1050 9in 9" N/A 6.3" 6:1 2.6 6.4 37.5 lbs
Flex-Lok 1050 10in 10" N/A 7" 6:1 2.2 6 40 lbs
Flex-Lok 1050 12in 12" N/A 8.5" 6:1 1.5 4.5 45 lbs
Flex-Lok 1050 14in 14" N/A N/A N/A N/A N/A N/A
Flex-Lok 1050 16in 16" N/A N/A N/A N/A N/A N/A
Flex-Lok 1050 18in 18" N/A 15" 6:1 .65 2.1 87.5 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
