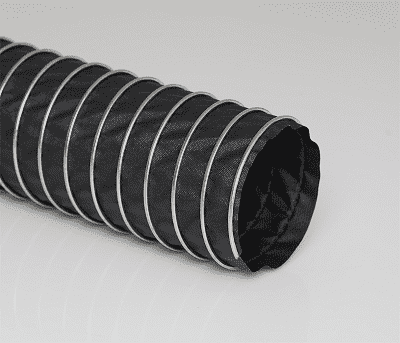

14-Flex-Lok-300-25 Flexaust #1841400025 Flex-Lok 300 14 inch Fume Duct Hose - 25ft

  • $366.67

SPECIFICATIONS

Applications: Garage Exhaust, Smoke Ejectors, Welding Fume Extraction SAE Rating: N/A
Other Ratings: N/A Tube: Single-ply black neoprene coated polyester fabric
Reinforcement: Coated steel wire Cover: N/A
Temperature Range: -65 deg. F to 300 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Fabric is locked around a coated steel wire by a metal strip formed into a clip.
  • Metal strip acts as a wearstrip and offers outstanding external abrasion resistance.
  • Extremely flexible & compressible.
  • Flame retardant to UL 94V-0.
  • Ideal for low temperature fume control applications.
  • Available with a non-marking thermoplastic rubber clip cover to protect the helix & the equipment that is attached to the hose.
  • Negative pressure fan system with ambient air inlet recommended to maximize effectiveness and life of duct.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
Flex-Lok 300 3in 3" N/A 2.5" 6:1 6 11 12.75 lbs
Flex-Lok 300 4in 4" N/A 3" 6:1 5 8 16 lbs
Flex-Lok 300 5in 5" N/A 3.5" 8:1 4 6 15.25 lbs
Flex-Lok 300 6in 6" N/A 4" 8:1 3.8 5 18 lbs
Flex-Lok 300 7in 7" N/A 5" 8:1 3.5 4.4 22 lbs
Flex-Lok 300 8in 8" N/A 5.5" 8:1 3.3 3.9 25 lbs
Flex-Lok 300 9in 9" N/A 6.3" 8:1 3 3.4 27.5 lbs
Flex-Lok 300 10in 10" N/A 7" 8:1 2.8 3.2 30.25 lbs
Flex-Lok 300 12in 12" N/A 8.5" 8:1 2.5 2.8 34.75 lbs
Flex-Lok 300 14in 14" N/A N/A N/A N/A N/A N/A
Flex-Lok 300 16in 16" N/A N/A N/A N/A N/A N/A
Flex-Lok 300 18in 18" N/A N/A N/A N/A N/A N/A

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
