4-Flex-Lok-300-25 Flexaust Flex-Lok 300 4 inch Fume Duct Hose - 25ft
4-Flex-Lok-300-25 Flexaust Flex-Lok 300 4 inch Fume Duct Hose - 25ft
4-Flex-Lok-300-25 Flexaust Flex-Lok 300 4 inch Fume Duct Hose - 25ft
4-Flex-Lok-300-25 Flexaust Flex-Lok 300 4 inch Fume Duct Hose - 25ft

4-Flex-Lok-300-25 by Flexaust | #1840400025 | Flex-Lok 300 Fume Duct Hose | 4 inch | 25ft

Save $91.83 Save $91.83
$229.58
$229.58 - $229.58
$229.58
$137.75
$137.75 - $137.75
$137.75

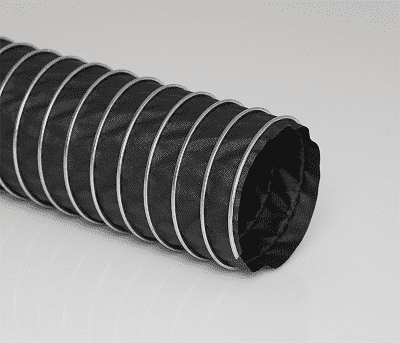

Flexaust Flex-Lok 300 Fume Duct Hose Single-ply black neoprene coated polyester fabric hose mechanically crimped in a continuous process

Package Quantity: 25 FT

Specifications for Variant SKU: 4-Flex-Lok-300-25 Flexaust | 25 |
Brand: Flex-Lok
Series: Flex-Lok 300
Hose Color(s): Black
Internal Diameter: 4in
Tubing Construction: Neoprene Coated Polyester
Special Properties: Outer Helix Protection

SPECIFICATIONS

Applications: Garage Exhaust, Smoke Ejectors, Welding Fume Extraction SAE Rating: N/A
Other Ratings: N/A Tube: Single-ply black neoprene coated polyester fabric
Reinforcement: Coated steel wire Cover: N/A
Temperature Range: -65 deg. F to 300 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Fabric is locked around a coated steel wire by a metal strip formed into a clip.
  • Metal strip acts as a wearstrip and offers outstanding external abrasion resistance.
  • Extremely flexible & compressible.
  • Flame retardant to UL 94V-0.
  • Ideal for low temperature fume control applications.
  • Available with a non-marking thermoplastic rubber clip cover to protect the helix & the equipment that is attached to the hose.
  • Negative pressure fan system with ambient air inlet recommended to maximize effectiveness and life of duct.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
Flex-Lok 300 3in 3" N/A 2.5" 6:1 6 11 12.75 lbs
Flex-Lok 300 4in 4" N/A 3" 6:1 5 8 16 lbs
Flex-Lok 300 5in 5" N/A 3.5" 8:1 4 6 15.25 lbs
Flex-Lok 300 6in 6" N/A 4" 8:1 3.8 5 18 lbs
Flex-Lok 300 7in 7" N/A 5" 8:1 3.5 4.4 22 lbs
Flex-Lok 300 8in 8" N/A 5.5" 8:1 3.3 3.9 25 lbs
Flex-Lok 300 9in 9" N/A 6.3" 8:1 3 3.4 27.5 lbs
Flex-Lok 300 10in 10" N/A 7" 8:1 2.8 3.2 30.25 lbs
Flex-Lok 300 12in 12" N/A 8.5" 8:1 2.5 2.8 34.75 lbs
Flex-Lok 300 14in 14" N/A N/A N/A N/A N/A N/A
Flex-Lok 300 16in 16" N/A N/A N/A N/A N/A N/A
Flex-Lok 300 18in 18" N/A N/A N/A N/A N/A N/A

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
