5-Flex-Lok-600-25 Flexaust Flex-Lok 600 5 inch Fume Duct Hose - 25ft
5-Flex-Lok-600-25 Flexaust Flex-Lok 600 5 inch Fume Duct Hose - 25ft
5-Flex-Lok-600-25 Flexaust Flex-Lok 600 5 inch Fume Duct Hose - 25ft
5-Flex-Lok-600-25 Flexaust Flex-Lok 600 5 inch Fume Duct Hose - 25ft

5-Flex-Lok-600-25 by Flexaust | #1930500025 | Flex-Lok 600 Fume Duct Hose | 5 inch | 25ft

Save $431.00 Save $431.00
$1,077.50
$1,077.50 - $1,077.50
$1,077.50
$646.50
$646.50 - $646.50
$646.50

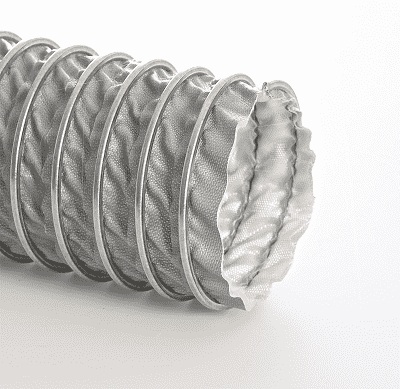

Flexaust Flex-Lok 600 Fume Duct Hose Double-ply silver construction silicone coated fiberglass fabric hose with a silver heat-resistant fiberglass liner mechanically crimped in a continuous process

Package Quantity: 25 FT

Specifications for Variant SKU: 5-Flex-Lok-600-25 Flexaust | 25 |
Brand: Flex-Lok
Series: Flex-Lok 600
Hose Color(s): Grey
Internal Diameter: 5in
Tubing Construction: Silicone Coated Fiberglass
Special Properties: Outer Helix Protection

SPECIFICATIONS

Applications: Aircraft, Diesel/Engine Exhaust, Exhaust Systems, Garage Exhaust, Vehicle Exhaust Systems SAE Rating: N/A
Other Ratings: N/A Tube: Double-ply silver construction silicone coated fiberglass fabric
Reinforcement: Coated steel wire Cover: N/A
Temperature Range: -65 deg. F to 600 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Fabric is locked around a coated steel wire by a metal strip formed into a clip.
  • Metal strip acts as a wearstrip and offers outstanding external abrasion resistance.
  • Extremely flexible & compressible.
  • Fiberglass liner increases tensile strength for a longer life cycle.
  • Flame retardant to UL 94V-0.
  • Ideal for medium temperature fume control & vehicle exhaust applications.
  • Available with a non-marking thermoplastic rubber clip cover to protect the helix & the equipment that is attached to the hose.
  • Negative pressure fan system with ambient air inlet recommended to maximize effectiveness and life of duct.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
Flex-Lok 600 3in 3" N/A 2.5" 5:1 8 15 18.75 lbs
Flex-Lok 600 4in 4" N/A 3" 5:1 7.2 13.6 21.25 lbs
Flex-Lok 600 5in 5" N/A 3.5" 6:1 6.1 11 23.75 lbs
Flex-Lok 600 6in 6" N/A 4.5" 6:1 5 9.2 25 lbs
Flex-Lok 600 8in 8" N/A 5" 6:1 4 8.5 27.5 lbs
Flex-Lok 600 10in 10" N/A 5.5" 6:1 3.5 8 30 lbs
Flex-Lok 600 12in 12" N/A 6" 6:1 3.3 7.3 37.5 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
