10-Flex-Lok-TCF-25 Flexaust Flex-Lok TCF 10 inch Fume Duct Hose - 25ft

10-Flex-Lok-TCF-25 by Flexaust | #1971000025 | Flex-Lok TCF | Fume Duct Hose | 10 inch | 25ft

Save $188.93 Save $188.93
$1,889.26
$1,889.26 - $1,889.26
$1,889.26
$1,700.33
$1,700.33 - $1,700.33
$1,700.33

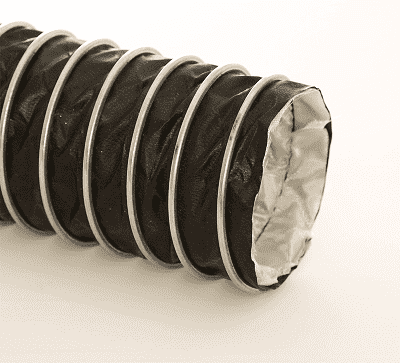

Flexaust Flex-Lok® TCF Fume Duct Hose Double-ply construction black Teflon® fabric hose with a silver heat-resistant fiberglass liner mechanically crimped in a continuous process.

Package Quantity: 25 FT

Specifications for Variant SKU: 10-Flex-Lok-TCF-25 Flexaust | 25 |
Brand: Flex-Lok
Series: Flex-Lok TCF
Hose Color(s): Black
Internal Diameter: 10in
Tubing Construction: Fiberglass Fabric
Cover Construction: Teflon Fabric
Special Properties: Outer Helix Protection

SPECIFICATIONS

Applications: Aircraft, Brick Kilns, Chemical Fume Extraction, Diesel/Engine Exhaust, Exhaust Systems, Fume Exhaust, Garage Exhaust, Vehicle Exhaust Systems SAE Rating: N/A
Other Ratings: N/A Tube: Silver heat-resistant fiberglass liner
Reinforcement: Coated steel wire and a metal strip formed into a clip Cover: Double-ply construction black Teflon® fabric
Temperature Range: -60 deg. F to 600 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Fabric is locked around a coated steel wire by a metal strip formed into a clip.
  • Metal strip acts as a wearstrip and offers outstanding external abrasion resistance.
  • Fiberglass liner increases tensile strength for a longer life cycle.
  • Excellent fatigue resistance & good flex characteristics.
  • Excellent for reel & drop systems.
  • Sealed exterior prevents the escape of dangerous fumes.
  • Ideal for venting many of today’s harsh chemicals.
  • Negative pressure fan system with ambient air inlet recommended to maximize effectiveness and life of duct.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
Flex-Lok TCF 4in 4" N/A 4" 3:1 7 9 21.75 lbs
Flex-Lok TCF 5in 5" N/A 4.5" 5:1 6 7 20.25 lbs
Flex-Lok TCF 6in 6" N/A 5" 5:1 4 6 24 lbs
Flex-Lok TCF 8in 8" N/A 6.5" 5:1 3.5 4.5 33.25 lbs
Flex-Lok TCF 10in 10" N/A 8" 5:1 3 3.2 40.25 lbs
Flex-Lok TCF 12in 12" N/A 9.5" 5:1 2.5 2.8 46.25 lbs
Flex-Lok TCF 14in 14" N/A N/A N/A N/A N/A N/A
Flex-Lok TCF 16in 16" N/A 12" 5:1 1.5 1.9 64.50 lbs
Flex-Lok TCF 18in 18" N/A N/A N/A N/A N/A N/A

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
