5-Flex-Tube-FlexStat-25 Flexaust Flex-Tube FlexStat 5 inch Fume, Dust, and Material Handling Duct Hose - 25ft
5-Flex-Tube-FlexStat-25 Flexaust Flex-Tube FlexStat 5 inch Fume, Dust, and Material Handling Duct Hose - 25ft
5-Flex-Tube-FlexStat-25 Flexaust Flex-Tube FlexStat 5 inch Fume, Dust, and Material Handling Duct Hose - 25ft
5-Flex-Tube-FlexStat-25 Flexaust Flex-Tube FlexStat 5 inch Fume, Dust, and Material Handling Duct Hose - 25ft

5-Flex-Tube-FlexStat-25 by Flexaust | #3641050025 | Flex-Tube FlexStat | Fume, Dust, and Material Handling Duct Hose | 5 inch | 25ft

Save $422.83 Save $422.83
$1,057.08
$1,057.08 - $1,057.08
$1,057.08
$634.25
$634.25 - $634.25
$634.25

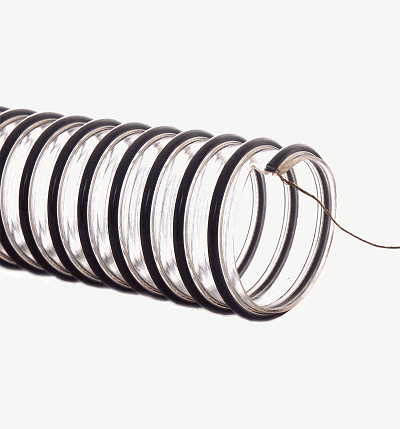

Flexaust Flex-Tube® FlexStat® Specially formulated clear static dissipative thermoplastic polyurethane hose reinforced with a rigid black external ABS helix & an embedded copper grounding wire.

Package Quantity: 25 FT

Specifications for Variant SKU: 5-Flex-Tube-FlexStat-25 Flexaust | 25 |
Brand: Flex-Tube
Series: FlexStat
Hose Color(s): Black & Clear/Semi-Clear
Internal Diameter: 5in
Tubing Construction: Polyurethane
Special Properties: Ground Wire in Hose, Outer Helix Protection

SPECIFICATIONS

Applications: Food Grade, Granule Transport, Industrial Vacuum Cleaners, Plastic Pellet Transfer, Powder & Bulk, Static Control, Woodworking/Furniture Industry SAE Rating: N/A
Other Ratings: N/A Tube: Specially formulated clear static dissipative thermoplastic polyurethane
Reinforcement: Rigid black external ABS helix & an embedded copper grounding wire Cover: N/A
Temperature Range: -40 deg. F to 200 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Extremely flexible with great abrasion resistance.
  • Smooth interior assures minimal friction loss, efficient air flow & elimination of material build-up.
  • Enclosed copper grounding wire reduces static build-up in material handling applications.
  • Ideal for plastic pellet & powder transfer applications.
  • Surface Resistivity Level:108-1010 Ohms/Square.
  • Manufactured with FDA acceptable materials.
Part Number 25 ft Reels Part Number 50 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft Weight - 50ft
Flx-Tube FlexStat 1in Flx-Tube FlexStat 1in 1" .032" 1.5" 1:1 29 50 4.25 lbs 8.5 lbs
Flx-Tube FlexStat 1.25in Flx-Tube FlexStat 1.25in 1.25" .040" 1.9" 1:1 29 50 5.25 lbs 10.5 lbs
Flx-Tube FlexStat 1.5in Flx-Tube FlexStat 1.5in 1.5" .040" 2" 1:1 29 50 6 lbs 12 lbs
Flx-Tube FlexStat 2in Flx-Tube FlexStat 2in 2" .040" 2.5" 1:1 29 50 7.5 lbs 15 lbs
Flx-Tube FlexStat 2.5in Flx-Tube FlexStat 2.5in 2.5" .040" 5" 1.5:1 28 35 12.5 lbs 25 lbs
Flx-Tube FlexStat 3in Flx-Tube FlexStat 3in 3" .040" 5.5" 1.5:1 26 32 13.75 lbs 27.5 lbs
Flx-Tube FlexStat 4in Flx-Tube FlexStat 4in 4" .040" 6" 1.5:1 22 30 18.75 lbs 37.5 lbs
Flx-Tube FlexStat 5in Flx-Tube FlexStat 5in 5" .045" 7" 1.5:1 18 28 25 lbs 50 lbs
Flx-Tube FlexStat 6in Flx-Tube FlexStat 6in 6" .045" 7.75" 1.5:1 12 26 31.25 lbs 62.5 lbs
Flx-Tube FlexStat 7in Flx-Tube FlexStat 7in 7" .045" 10" 1.5:1 11 25 37.5 lbs 75 lbs
Flx-Tube FlexStat 8in Flx-Tube FlexStat 8in 8" .045" 12" 1.5:1 10 24 43.75 lbs 87.5 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
