4-Flex-Tube-FlexStat-60-50 Flexaust Flex-Tube FlexStat 60 4 inch Dust and Material Handling Duct Hose - 50ft

4-Flex-Tube-FlexStat-60-50 by Flexaust | #3530040050 | Flex-Tube FlexStat 60 | Dust and Material Handling Duct Hose | 4 inch | 50ft

Save $188.67 Save $188.67
$1,886.67
$1,886.67 - $1,886.67
$1,886.67
$1,698.00
$1,698.00 - $1,698.00
$1,698.00

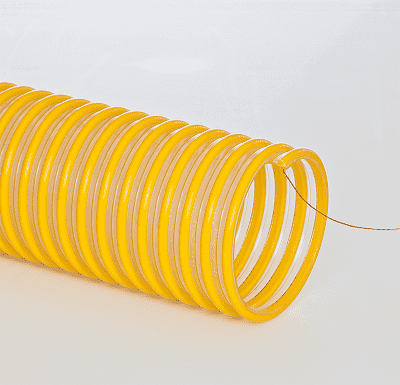

Flexaust Flex-Tube® FlexStat® 60 Dust and Material Handling Duct Hose Specially formulated clear static dissipative thermoplastic polyurethane hose reinforced with a rigid yellow external ABS helix & an embedded copper grounding wire.

Package Quantity: 50 FT

Specifications for Variant SKU: 4-Flex-Tube-FlexStat-60-50 Flexaust | 50 |
Brand: Flex-Tube
Series: FlexStat 60
Hose Color(s): Yellow & Clear/Semi-Clear
Internal Diameter: 4in
Tubing Construction: Polyurethane
Special Properties: Ground Wire in Hose, Outer Helix Protection

SPECIFICATIONS

Applications: Grain Vac, Powder & Bulk, Static Control SAE Rating: N/A
Other Ratings: N/A Tube: Clear static dissipative thermoplastic polyurethane
Reinforcement: Rigid yellow external ABS helix & an embedded copper grounding wire Cover: N/A
Temperature Range: -40 deg. F to 200 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Extreme abrasion resistance.
  • Handles high vacuum.
  • Smooth interior assures minimal friction loss, efficient air flow & elimination of material build-up.
  • Enclosed copper grounding wire reduces static build-up in material handling applications.
  • Permanent and non-humidity dependent ESD (electrostatic discharge) protection.
  • Ideal for severe service applications, hopper loading systems and railcar loading/unloading.
  • Surface Resistivity Level: 108-1010 Ohms/Square.
Part Number 25 ft Reels Part Number 50 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft) Weight - 50ft (Lbs/Ft)
FlexStat 60 4in FlexStat 60 4in 4" .055 11.75" N/A 28 40 22.5 lbs 45 lbs
FlexStat 60 5in FlexStat 60 5in 5" .060 15.5" N/A 28 36 31.75 lbs 63.5 lbs
FlexStat 60 6in FlexStat 60 6in 6" .060 16.75" N/A 28 30 42.5 lbs 85 lbs
FlexStat 60 8in FlexStat 60 8in 8" .060 20.5" N/A 26 28 61 lbs 122 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
