5-Flex-Tube-FlexStat-CR-50 Flexaust Flex-Tube FlexStat CR 5 inch Fume, Dust, and Material Handling Duct Hose - 50ft

5-Flex-Tube-FlexStat-CR-50 by Flexaust | #3644050050 | Flex-Tube FlexStat CR | Fume, Dust, and Material Handling Duct Hose | 5 inch | 50ft

Save $146.30 Save $146.30
$1,462.97
$1,462.97 - $1,462.97
$1,462.97
$1,316.67
$1,316.67 - $1,316.67
$1,316.67

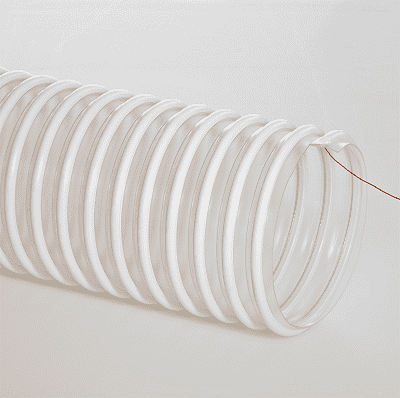

Flexaust Flex-Tube FlexStat® CR Dust, Fume, and Material Handling Duct Hose Specially formulated clear static dissipative thermoplastic polyurethane hose reinforced with a rigid white external ABS helix & an embedded copper grounding wire.

Package Quantity: 50 FT

Specifications for Variant SKU: 5-Flex-Tube-FlexStat-CR-50 Flexaust | 50 |
Brand: Flex-Tube
Series: FlexStat CR
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 5in
Tubing Construction: Polyurethane
Special Properties: Ground Wire in Hose, Outer Helix Protection

SPECIFICATIONS

Applications: Clean Rooms, Food Grade, Pharmaceutical, Plastic Pellet Transfer, Powder & Bulk, Static Control SAE Rating: N/A
Other Ratings: N/A Tube: Clear static dissipative thermoplastic polyurethane
Reinforcement: Rigid white external ABS helix & an embedded copper grounding wire Cover: N/A
Temperature Range: -40 deg. F to 200 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Extremely flexible with great abrasion resistance vs. heavy walled PVC.
  • Smooth interior assures minimal friction loss, efficient air flow & elimination of material build-up.
  • Enclosed copper grounding wire reduces static build-up in material handling applications.
  • Permanent and non-humidity dependent ESD (electrostatic discharge) protection.
  • Ideal for clean room and pharmaceutical applications, powder processing and pneumatic conveying systems.
  • Surface Resistivity Level: 108-1010 Ohms/Square.
  • Manufactured with FDA acceptable materials.
Part Number 25 ft Reels Part Number 50 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft Weight - 50ft
FlexStat CR 1in FlexStat CR 1in 1" .032 1.5" 1:1 29 50 4.25 lbs 8.5 lbs
FlexStat CR 1.25in FlexStat CR 1.25in 1.25" .040 1.9" 1.1 29 50 5.25 lbs 10.5 lbs
FlexStat CR 1.5in FlexStat CR 1.5in 1.5" .040 2" 1:1 29 50 6 lbs 12 lbs
FlexStat CR 2in FlexStat CR 2in 2" .040 2.5" 1:1 29 50 7.5 lbs 15 lbs
FlexStat CR 2.5in FlexStat CR 2.5in 2.5" .040 5" 1.5:1 28 35 12.5 lbs 25 lbs
FlexStat CR 3in FlexStat CR 3in 3" .040 5.5" 1.5:1 26 32 13.75 lbs 27.5 lbs
FlexStat CR 4in FlexStat CR 4in 4" .040 6" 1.5:1 22 30 18.75 lbs 37.5 lbs
FlexStat CR 5in FlexStat CR 5in 5" .045 7" 1.5:1 18 28 25 lbs 50 lbs
FlexStat CR 6in FlexStat CR 6in 6" .045 7.75" 1.5:1 12 26 31.25 lbs 62.5 lbs
FlexStat CR 7in FlexStat CR 7in 7" .045 10" 1.5:1 11 25 37.5 lbs 75 lbs
FlexStat CR 8in FlexStat CR 8in 8" .045 12" 1.5:1 10 24 43.75 lbs 87.5 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
