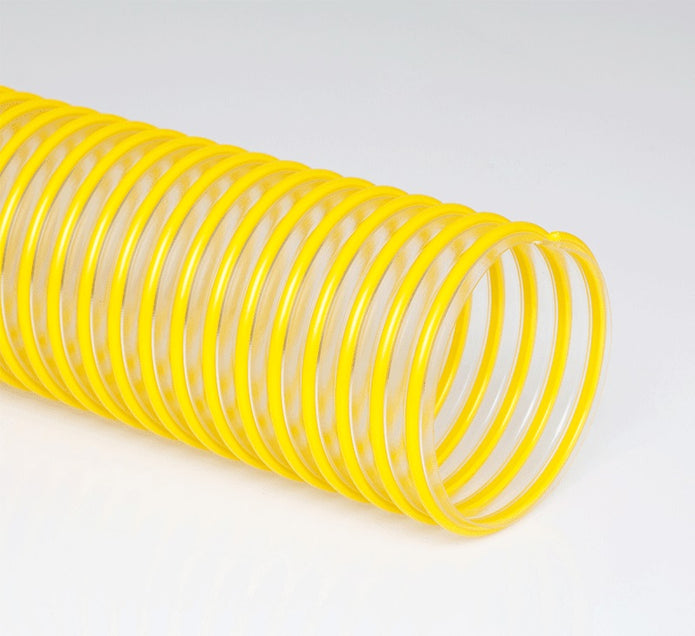

10-Flex-Tube-PU-25 Flexaust #3493100025 Flex-Tube PU 10 inch Dust and Material Handling Duct Hose - 25ft
10-Flex-Tube-PU-25 Flexaust Flex-Tube PU 10 inch Dust and Material Handling Duct Hose - 25ft
10-Flex-Tube-PU-25 Flexaust #3493100025 Flex-Tube PU 10 inch Dust and Material Handling Duct Hose - 25ft
10-Flex-Tube-PU-25 Flexaust Flex-Tube PU 10 inch Dust and Material Handling Duct Hose - 25ft

10-Flex-Tube-PU-25 by Flexaust | #3493100025 | Flex-Tube PU | Dust and Material Handling Duct Hose | 10 inch | 25ft

Save $65.11 Save $65.11
$651.11
$651.11 - $651.11
$651.11
$586.00
$586.00 - $586.00
$586.00

Flexaust Flex-Tube® PU Medium weight clear co-extruded thermoplastic ether based polyurethane hose with a rigid yellow external ABS helix.

Package Quantity: 25 FT

Specifications for Variant SKU: 10-Flex-Tube-PU-25 Flexaust | 25 |
Brand: Flex-Tube
Series: Flex-Tube PU
Hose Color(s): Yellow & Clear/Semi-Clear
Internal Diameter: 10in
Tubing Construction: Polyurethane
Special Properties: Outer Helix Protection

SPECIFICATIONS

Applications: Abrasion Resistant Applications, Cotton Picking, Granule Transport, Industrial Vacuum Cleaners, Lav Waste Disposal, Lawn & Leaf Collection, Mulch Blowing, Woodworking/Furniture Industry SAE Rating: N/A
Other Ratings: N/A Tube: Medium weight clear co-extruded thermoplastic ether based polyurethane
Reinforcement: Rigid yellow external ABS helix Cover: N/A
Temperature Range: -40 deg. F to 200 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Ultra smooth interior assures efficient airflow.
  • Great abrasion resistance.
  • Excellent wear performance.
  • Puncture & tear resistant with high tensile strength.
  • Good low temperature flexibility.
  • Crush resistant.
  • Spiral co-extruded engineered construction.
  • Helix acts as a wearstrip.
  • Excellent hydrolysis & microbial resistance.
Part Number 12 ft Reels Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 12ft (Lbs/Ft) Weight - 25ft (Lbs/Ft)
Flx-Tube PU 2in Flx-Tube PU 2in 2" .032" 2.8" 1.5:1 28 37 4.08 lbs 8.5 lbs
Flx-Tube PU 2.5in Flx-Tube PU 2.5in 2.5" .032" 3.7" 1.5:1 28 35 4.8 lbs 10 lbs
Flx-Tube PU 3in Flx-Tube PU 3in 3" .033" 3.7" 1.7:1 26 32 5.52 lbs 12.5 lbs
Flx-Tube PU 4in Flx-Tube PU 4in 4" .033" 6" 1.5:1 20 28 9 lbs 18.75 lbs
Flx-Tube PU 5in Flx-Tube PU 5in 5" .033" 5.5" 2:1 16 23 9.96 lbs 20.75 lbs
Flx-Tube PU 6in Flx-Tube PU 6in 6" .035" 6.5" 2:1 10 24 11.04 lbs 23 lbs
Flx-Tube PU 7in Flx-Tube PU 7in 7" .035" 7.5" 2:1 9 21 13.92 lbs 29 lbs
Flx-Tube PU 8in Flx-Tube PU 8in 8" .035" 8.5" 2:1 8 22 15.84 lbs 33 lbs
Flx-Tube PU 9in Flx-Tube PU 9in 9" .040" 9.25" 2:1 7 20 18.36 lbs 38.25 lbs
Flx-Tube PU 10in Flx-Tube PU 10in 10" .040" 9.5" 2.25:1 6 16 19.8 lbs 41.25 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
