5-Flex-Tube-PU-60-HF-25 Flexaust Flex-Tube PU 60 HF 5 inch Material Handling Duct Hose - 25ft

5-Flex-Tube-PU-60-HF-25 by Flexaust | #3547050025 | Flex-Tube PU 60 HF | Material Handling Duct Hose | 5 inch | 25ft

Save $290.50 Save $290.50
$726.25
$726.25 - $726.25
$726.25
$435.75
$435.75 - $435.75
$435.75

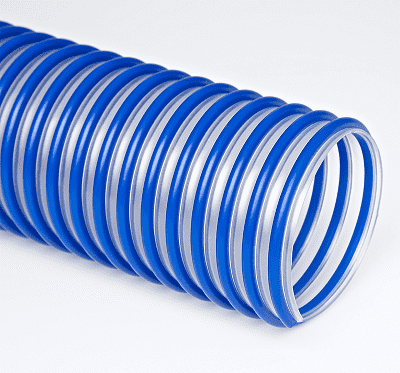

Flexaust Flex-Tube® PU 60 HF Material Handling Duct Hose Highly flexible very heavy weight clear thermoplastic polyether polyurethane hose with a blue rigid external ABS helix.

Package Quantity: 25 FT

Specifications for Variant SKU: 5-Flex-Tube-PU-60-HF-25 Flexaust | 25 |
Brand: Flex-Tube
Series: Flex-Tube PU 60 HF
Hose Color(s): Blue & Clear/Semi-Clear
Internal Diameter: 5in
Tubing Construction: Polyurethane
Special Properties: Outer Helix Protection
Applications: Grain Vac, Powder & Bulk, Sand Blasting Temperature Range: -40 deg. F to 200 deg. F
Reinforcement: Blue rigid external ABS helix Tube: Clear thermoplastic polyether polyurethane
Other Features:
  • Ultra smooth interior assures efficient airflow.
  • Highly flexible & extremely abrasion resistant.
  • Excellent wear performance.
  • Puncture & tear resistant with high tensile strength.
  • Crush resistant.
  • Spiral co-extruded engineered construction.
  • Helix acts as a wearstrip.
  • Excellent hydrolysis & microbial resistance.
Part Number 25 ft Reels Part Number 50 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft) Weight - 50ft (Lbs/Ft)
Flex-Tube PU 60 HF 2in Flex-Tube PU 60 HF 2in 2" .060 4.5" 28 40 13.75 lbs 27.5 lbs
Flex-Tube PU 60 HF 2.5in Flex-Tube PU 60 HF 2.5in 2.5" .060 5" 28 40 15.5 lbs 31 lbs
Flex-Tube PU 60 HF 3in Flex-Tube PU 60 HF 3in 3" .060 5.8" 28 40 19 lbs 38 lbs
Flex-Tube PU 60 HF 4in Flex-Tube PU 60 HF 4in 4" .060 6" 20 30 21.75 lbs 43.5 lbs
Flex-Tube PU 60 HF 5in Flex-Tube PU 60 HF 5in 5" .060 6.3" 14 24 25.5 lbs 51 lbs
Flex-Tube PU 60 HF 6in Flex-Tube PU 60 HF 6in 6" .060 6.5" 12 24 30.25 lbs 60.5 lbs
Flex-Tube PU 60 HF 7in Flex-Tube PU 60 HF 7in 7" .060 7.5" 10 21 35.25 lbs 70.5 lbs
Flex-Tube PU 60 HF 8in Flex-Tube PU 60 HF 8in 8" .060 8.5" 8 22 45.75 lbs 91.5 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
