7-Flex-Tube-PU-12 Flexaust #3493070012 Flex-Tube PU 7 inch Dust and Material Handling Duct Hose - 12ft
7-Flex-Tube-PU-12 Flexaust Flex-Tube PU 7 inch Dust and Material Handling Duct Hose - 12ft
7-Flex-Tube-PU-12 Flexaust #3493070012 Flex-Tube PU 7 inch Dust and Material Handling Duct Hose - 12ft
7-Flex-Tube-PU-12 Flexaust Flex-Tube PU 7 inch Dust and Material Handling Duct Hose - 12ft

7-Flex-Tube-PU-12 by Flexaust | #3493070012 | Flex-Tube PU | Dust and Material Handling Duct Hose | 7 inch | 12ft

Save $145.20 Save $145.20
$363.00
$363.00 - $363.00
$363.00
$217.80
$217.80 - $217.80
$217.80

Flexaust

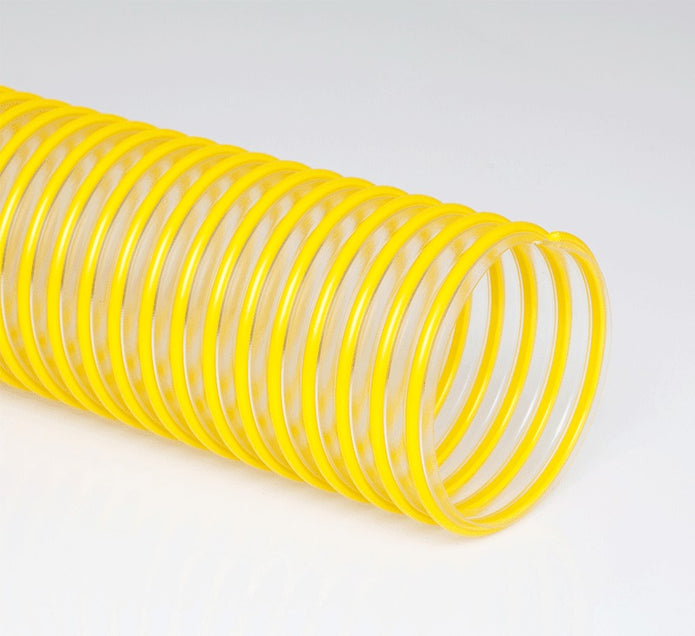

Flex-Tube® PU Dust & Material Handling Duct Hose

Medium weight clear co-extruded thermoplastic ether based polyurethane hose with a rigid yellow external ABS helix.

Package Quantity: 12 FT

Specifications for Variant SKU: 7-Flex-Tube-PU-12 Flexaust | 12 |
Brand: Flex-Tube
Series: Flex-Tube PU
Hose Color(s): Yellow & Clear/Semi-Clear
Internal Diameter: 7in
Tubing Construction: Polyurethane
Special Properties: Outer Helix Protection
Flex-Tube® Duct Hose

Flex-Tube® PU Dust & Material Handling Duct Hose

Medium weight clear co-extruded thermoplastic ether based polyurethane hose with a rigid yellow external ABS helix.

1

What is this hose used for?
  • Abrasion Resistant Applications
  • Cotton Picking
  • Granule Transport
  • Industrial Vacuum Cleaners
  • Lav Waste Disposal
  • Lawn & Leaf Collection
  • Mulch Blowing
  • Woodworking/Furniture Industry
2

What are the key specifications?
Tube

Medium weight clear co-extruded thermoplastic ether based polyurethane

Reinforcement

Rigid yellow external ABS helix

Temperature Range

-40°F to 200°F

3

What are the main product features?
  • Ultra smooth interior assures efficient airflow.
  • Great abrasion resistance.
  • Excellent wear performance.
  • Puncture & tear resistant with high tensile strength.
  • Good low temperature flexibility.
  • Crush resistant.
  • Spiral co-extruded engineered construction.
  • Helix acts as a wearstrip.
  • Excellent hydrolysis & microbial resistance.
4

Which sizes are available?
12 ft Reel 25 ft Reel Inside Diameter Wall Thickness (in.) Centerline Bend Radius (in.) Compression Ratio Negative Pressure (in. Hg) Working Pressure (PSI) Weight — 12 ft Reel Weight — 25 ft Reel
2-Flex-Tube-PU-12 2-Flex-Tube-PU-25 2" .032" 2.8" 1.5:1 28 37 4.08 lbs 8.5 lbs
2.5-Flex-Tube-PU-12 2.5-Flex-Tube-PU-25 2.5" .032" 3.7" 1.5:1 28 35 4.8 lbs 10 lbs
3-Flex-Tube-PU-12 3-Flex-Tube-PU-25 3" .033" 3.7" 1.7:1 26 32 5.52 lbs 12.5 lbs
4-Flex-Tube-PU-12 4-Flex-Tube-PU-25 4" .033" 6" 1.5:1 20 28 9 lbs 18.75 lbs
5-Flex-Tube-PU-12 5-Flex-Tube-PU-25 5" .033" 5.5" 2:1 16 23 9.96 lbs 20.75 lbs
6-Flex-Tube-PU-12 6-Flex-Tube-PU-25 6" .035" 6.5" 2:1 10 24 11.04 lbs 23 lbs
7-Flex-Tube-PU-12 7-Flex-Tube-PU-25 7" .035" 7.5" 2:1 9 21 13.92 lbs 29 lbs
8-Flex-Tube-PU-12 8-Flex-Tube-PU-25 8" .035" 8.5" 2:1 8 22 15.84 lbs 33 lbs
9-Flex-Tube-PU-12 9-Flex-Tube-PU-25 9" .040" 9.25" 2:1 7 20 18.36 lbs 38.25 lbs
10-Flex-Tube-PU-12 10-Flex-Tube-PU-25 10" .040" 9.5" 2.25:1 6 16 19.8 lbs 41.25 lbs
i
Technical data based on 2 ft. straight lengths of hose at 72°F.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
