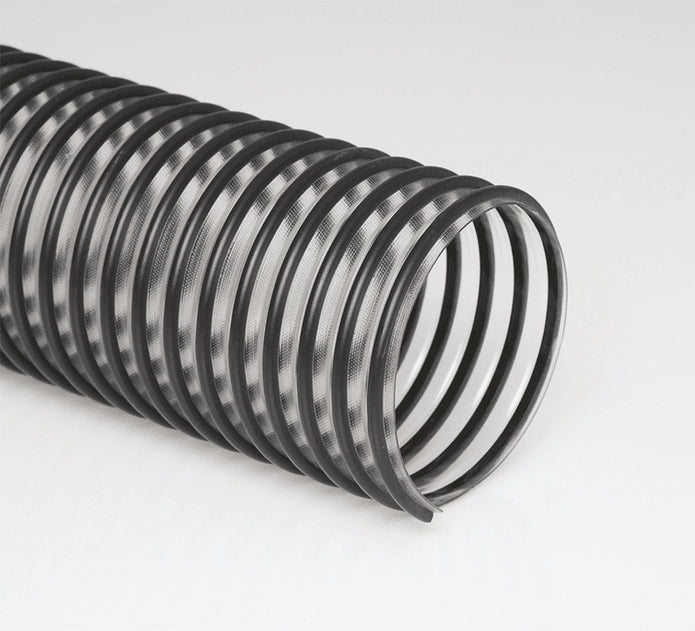

4-Flex-Tube-PV-25 Flexaust #3504040025 Flex-Tube PV 4 inch Air, Fume, and Dust Duct Hose - 25ft

  • $109.67

SPECIFICATIONS

Applications: Industrial Vacuum Cleaners, Lawn & Leaf Collection, Pharmaceutical, Woodworking/Furniture Industry SAE Rating: N/A
Other Ratings: N/A Tube: Medium weight clear co-extruded PVC
Reinforcement: Rigid black external PVC helix Cover: N/A
Temperature Range: -20 deg. F to 160 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Ultra smooth interior wall assures efficient airflow.
  • Very flexible & crush resistant.
  • Spiral co-extruded engineered construction.
  • Helix acts as a wearstrip.
Part Number 12 ft Reels Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 12ft (Lbs/Ft) Weight - 25ft (Lbs/Ft)
Flx-Tube PV 2in Flx-Tube PV 2in 2" .030" 2.2" 2:1 27 28 3.84 lbs 8 lbs
Flx-Tube PV 2.5in Flx-Tube PV 2.5in 2.5" .030" 3.1" 2:1 26 25 4.8 lbs 10 lbs
Flx-Tube PV 3in Flx-Tube PV 3in 3" .030" 3.7" 2:1 22 18 6 lbs 12.5 lbs
Flx-Tube PV 4in Flx-Tube PV 4in 4" .032" 4" 2:1 14 16 8.64 lbs 18 lbs
Flx-Tube PV 5in Flx-Tube PV 5in 5" .035" 5.25" 2:1 12 17 11.04 lbs 23 lbs
Flx-Tube PV 6in Flx-Tube PV 6in 6" .035" 6.25" 2:1 10 12 13.32 lbs 27.75 lbs
Flx-Tube PV 7in Flx-Tube PV 7in 7" .035" 7" 2:1 10 11 15.84 lbs 33 lbs
Flx-Tube PV 8in Flx-Tube PV 8in 8" .035" 8" 2:1 6 10 18 lbs 37.5 lbs
Flx-Tube PV 9in Flx-Tube PV 9in 9" .040" 9.25" 2:1 5 9 19.8 lbs 41.25 lbs
Flx-Tube PV 10in Flx-Tube PV 10in 10" .040" 9.5" 2:1 4 7 22.2 lbs 46.25 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
