6-Flx-Thane-HD-25 Flexaust Flx-Thane HD 6 inch Material Handling Duct Hose - 25ft

6-Flx-Thane-HD-25 by Flexaust | Flx-Thane HD | Material Handling Duct Hose | 6 inch | 25ft

$625.47 - $625.47

$625.47

$392.33

$392.33 - $392.33

$392.33

Flexaust
Flexadux® Flx-Thane® HD Material Handling Duct Hose

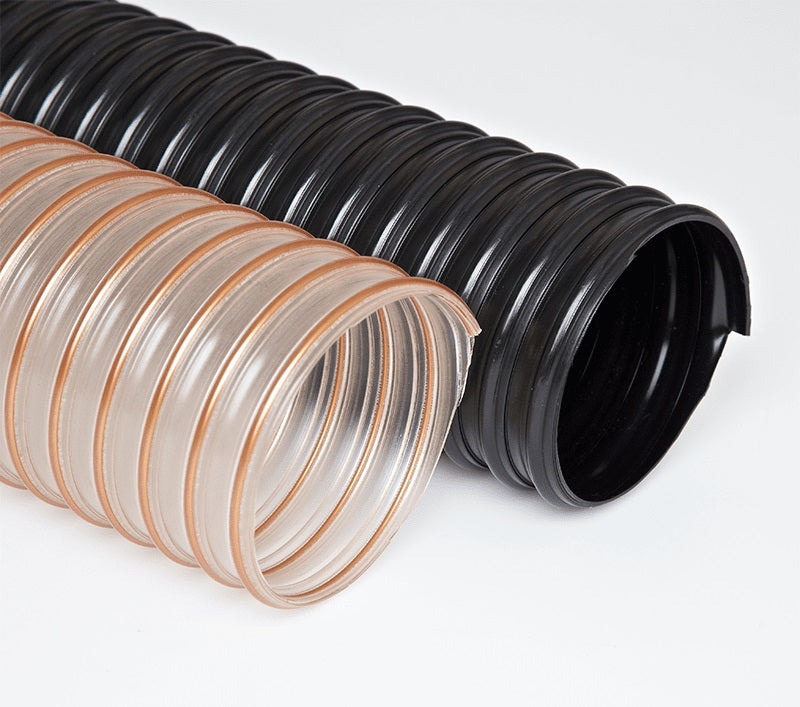

Heavy weight clear or black polyurethane hose reinforced with a bronze coated spring steel wire helix.

Quantity

Specifications for Variant SKU: 6-Flx-Thane-HD-25-Clear Flexaust \| 25 \|
Brand:	Flexadux PU
Series:	Flx-Thane HD
Hose Color(s):	Black, Clear/Semi-Clear
Internal Diameter:	6in
Tubing Construction:	Polyurethane

Flexadux® PU Duct Hose

Flx-Thane® HD Material Handling Duct Hose

Heavy weight clear or black polyurethane hose reinforced with a bronze coated spring steel wire helix.

1

What is this hose used for?

Agricultural
Concrete Transport
Lawn & Leaf Collection
Fertilizer Broadcasting
Food Grade
Foundry Sand Transfer
Street & Parking Lot Sweepers

2

What are the key specifications?

Tube

Heavy weight clear or black polyurethane

Reinforcement

Bronze coated spring steel wire helix

Temperature Range

-65°F to 225°F

3

What are the main product features?

Great abrasion resistance & high tear strength.
Superior chemical resistance.
Excellent flexibility.
Designed for applications with wide temperature ranges.
Ideal for severe service applications.
Very good low temperature flexibility.
Clear is manufactured with FDA acceptable materials.

4

Which sizes are available?

25 ft Reel	Inside Diameter	Wall Thickness (in.)	Centerline Bend Radius (in.)	Compression Ratio	Negative Pressure (in. Hg)	Working Pressure (PSI)	Weight — 25 ft Reel
2-Flx-Thane-HD-25	2"	.035"	2"	2:1	29	32	8.75 lbs
2.5-Flx-Thane-HD-25	2.5"	—	—	—	—	—	—
3-Flx-Thane-HD-25	3"	.035"	3"	2:1	29	32	13.75 lbs
3.5-Flx-Thane-HD-25	3.5"	—	—	—	—	—	—
4-Flx-Thane-HD-25	4"	.045"	3.5"	2:1	29	30	12.5 lbs
5-Flx-Thane-HD-25	5"	.040"	4"	2:1	17	30	27.5 lbs
6-Flx-Thane-HD-25	6"	.045"	5"	2:1	15	24	30 lbs
7-Flx-Thane-HD-25	7"	.045"	7"	2:1	12	22	35 lbs
8-Flx-Thane-HD-25	8"	.045"	8"	2:1	9	20	42.5 lbs
10-Flx-Thane-HD-25	10"	.045"	9"	2:1	4	17	47.5 lbs
12-Flx-Thane-HD-25	12"	.045"	11"	2:1	2.5	14	60 lbs
14-Flx-Thane-HD-25	14"	.045"	13"	2:1	3.5	12	80 lbs
16-Flx-Thane-HD-25	16"	.045"	15"	2:1	2.5	11	92.5 lbs
18-Flx-Thane-HD-25	18"	.045"	17"	2:1	1.5	10	102.5 lbs

i

Technical data based on 2 ft. straight lengths of hose at 72°F.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
